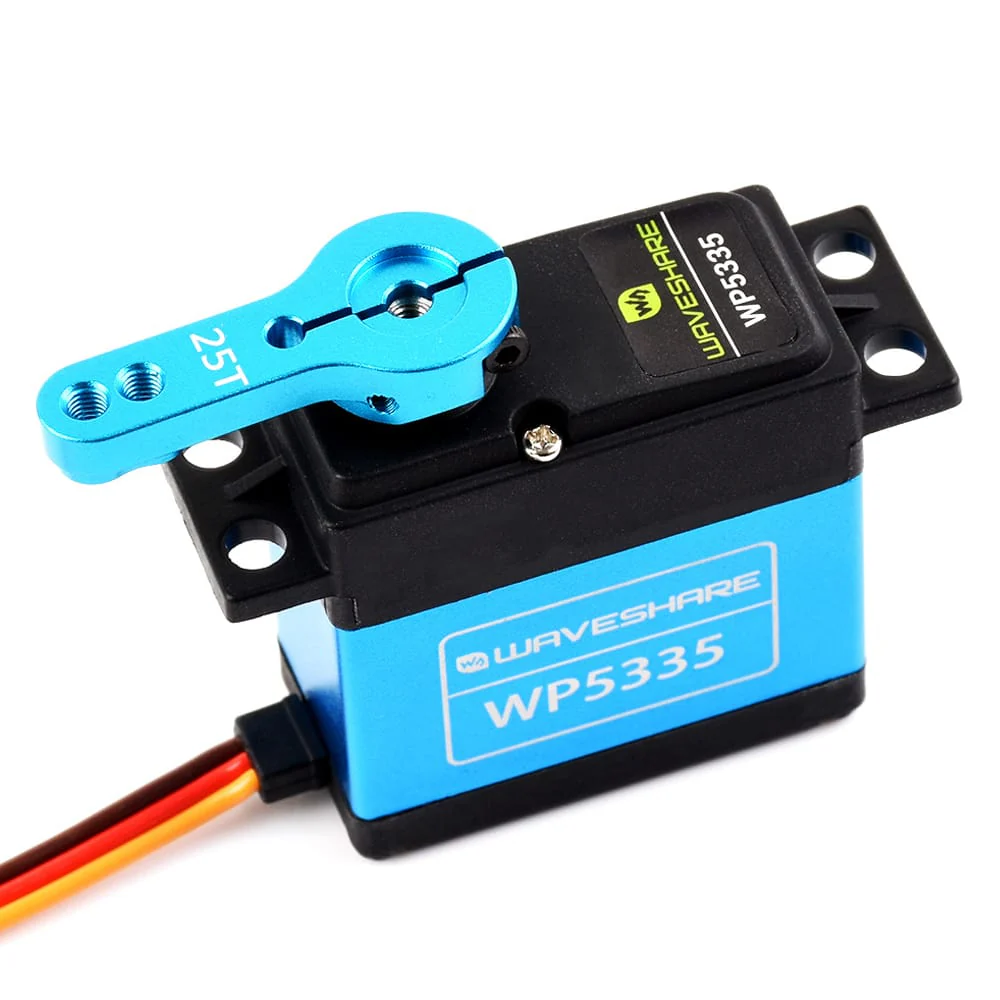

35kg.cm Steel Gear High-Torque 180° Digital Servo

The WP5335 is a high-performance 180° steel gear, 35kg.cm, IP54 waterproof and dustproof digital servo with dual ball bearings.

The high torque servo operates between 4-8.4V with a no load current of 180mA and locked rotor current of 3.9A at 7.4V, with a KT rating (torque per amp of current) of 10kg.cm/A.

It's a 180° servo, controlled via PWM (pulse width modulation - 500μsec to 2500μsec) with a mechanically unlimited angle, using a standard 3-pin output for GND, VCC and PWM. It can be controlled with various servo drivers such as this 16-Channel HAT from Waveshare.

The servo also features an electronic protection function, which can automatically output protection torque during stalling, effectively protecting the safe operation of the servo and the system.

A set of servo horns and fixings are included in the package. We also stock a 20kg.cm version with copper gears.

Features

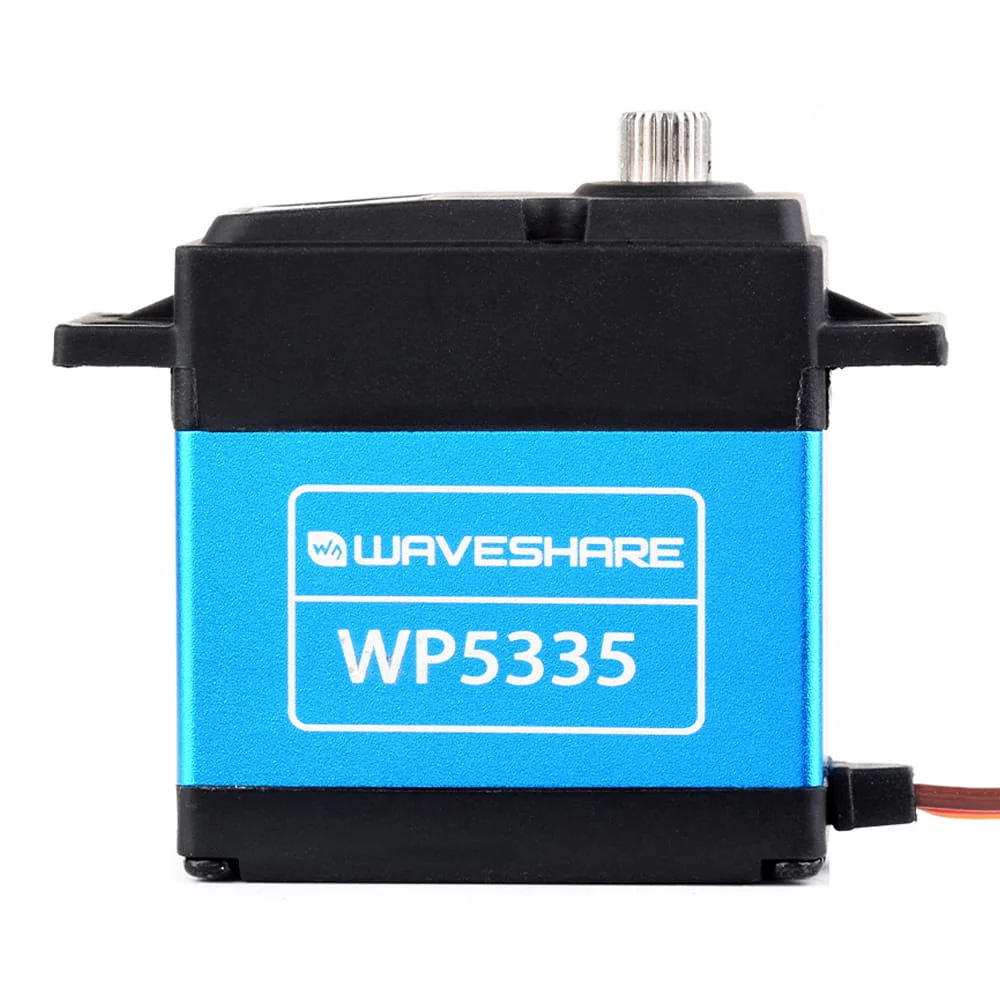

• WP5335 digital servo
  • 180° servo
  • 35.5kg.cm stall torque at 7.4V
  • IP54 waterproof and dustproof
  • Steel gears
  • Dual ball bearings
• Electrical characteristics
  • 4-8.4V operating voltage
  • 180mA no-load current
  • 3.9A locked-rotor current at 7.4V
  • KT rating of 10kg.cm/A
• Control and interface
  • PWM control
  • 500μsec to 2500μsec pulse width
  • Mechanically unlimited angle
  • Standard 3-pin output for GND, VCC and PWM
  • Digital comparator control system
  • Precise angle control and positioning
  • Adjustable control parameters
• Gear and bearing construction

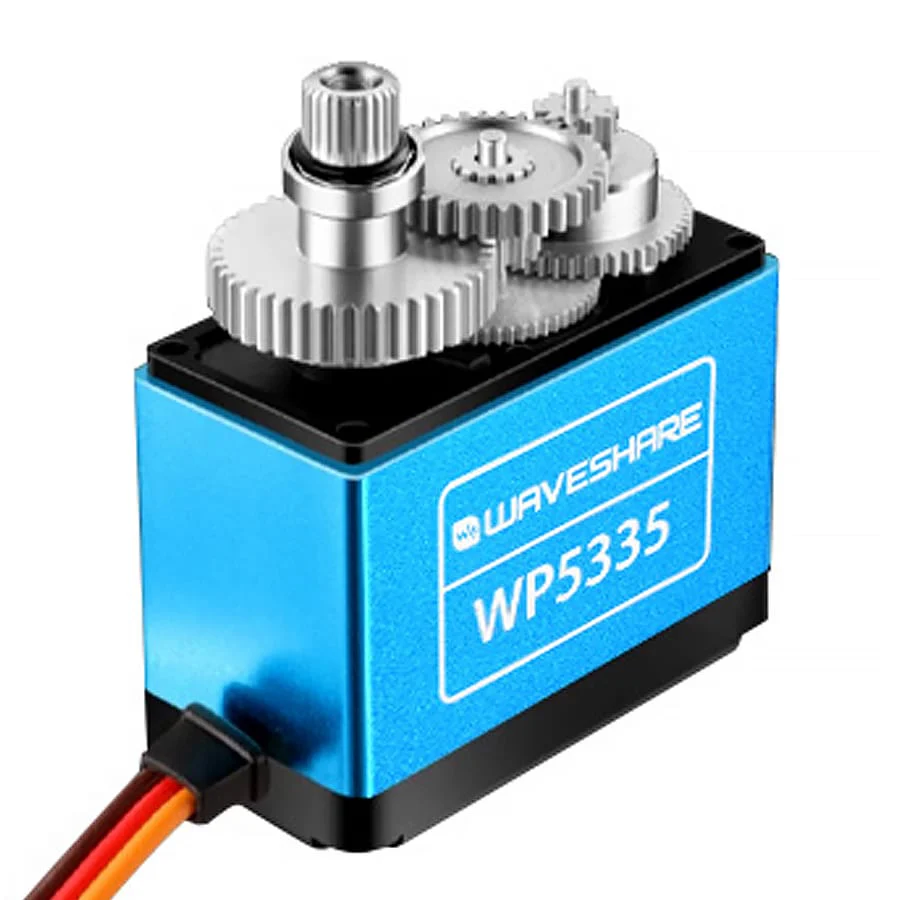

  • All steel gears
  • 2.0 gear shaft
  • Optimised centre distance
  • Double ball bearing design
• Protection
  • Electronic protection function

Specifications

Operating voltage range	4V-8.4V
No-load speed	0.192sec/60°(52RPM)@7.4V
No-load current	[email protected]
Stall torque	[email protected]
Stall current	[email protected]
Static current	[email protected]
Rated load	[email protected]
Rated current	[email protected]
Kt constant	10kg.cm/A

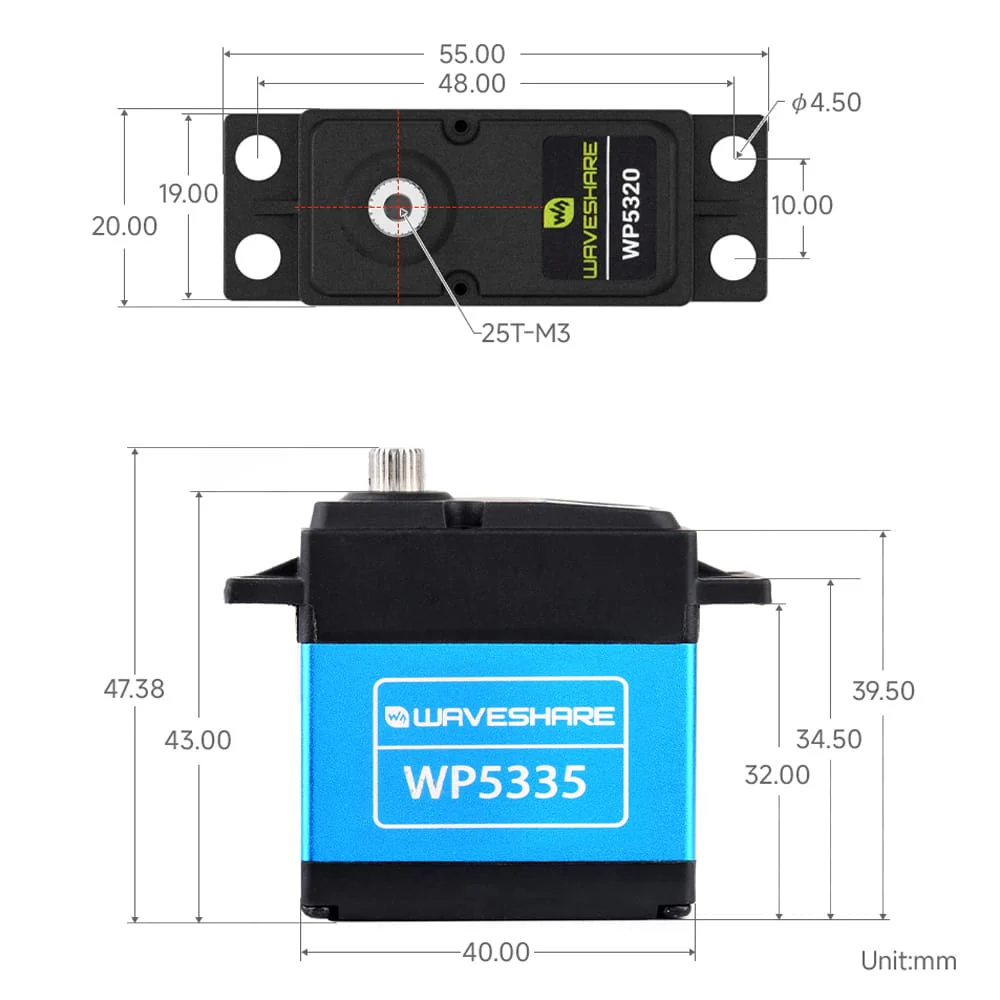

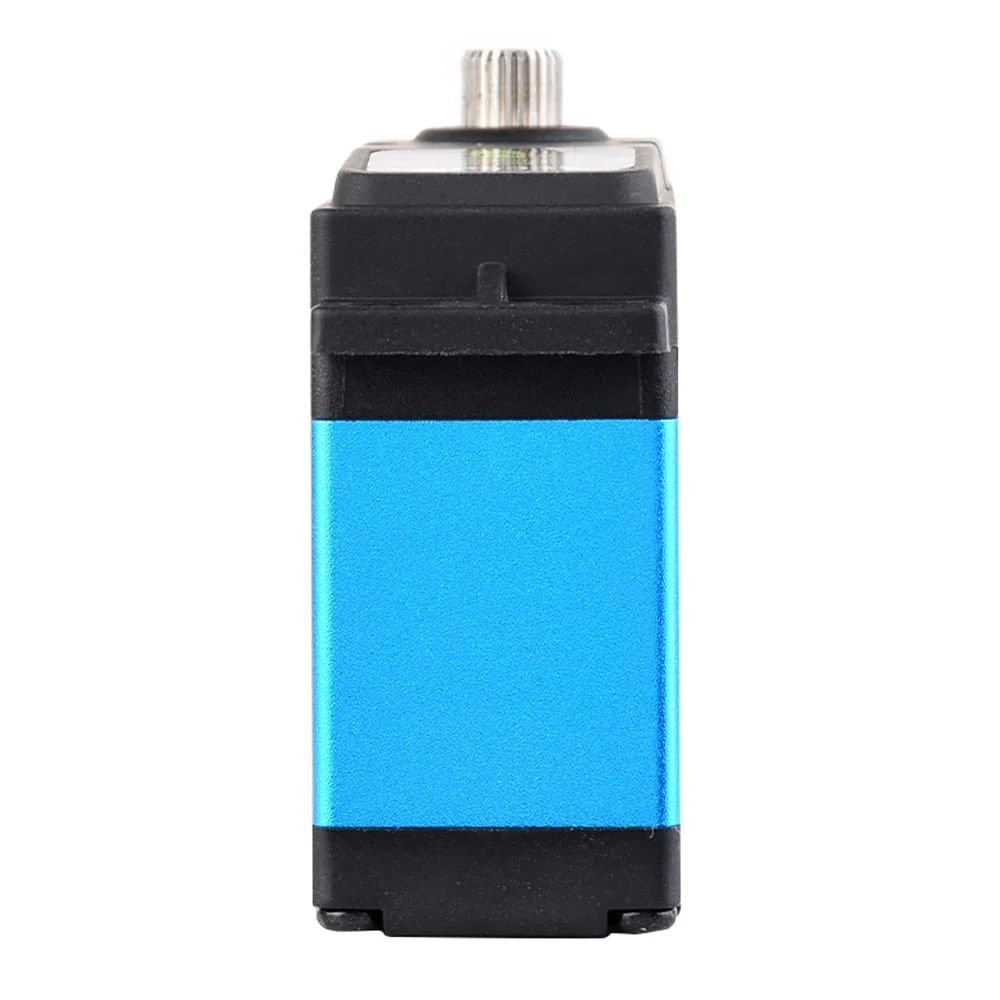

Dimensions	55*20*43(mm)
Mechanism limit angle	Unlimited
Bearing type	Ball bearing
Weight	67±1g
Output shaft	25T/5.9mm
Reduction ratio	1/356
Gear backlash	≤0.5°
Linkage play	0°
Angle sensor	Carbon film potentiometer

Resources

• Product Wiki

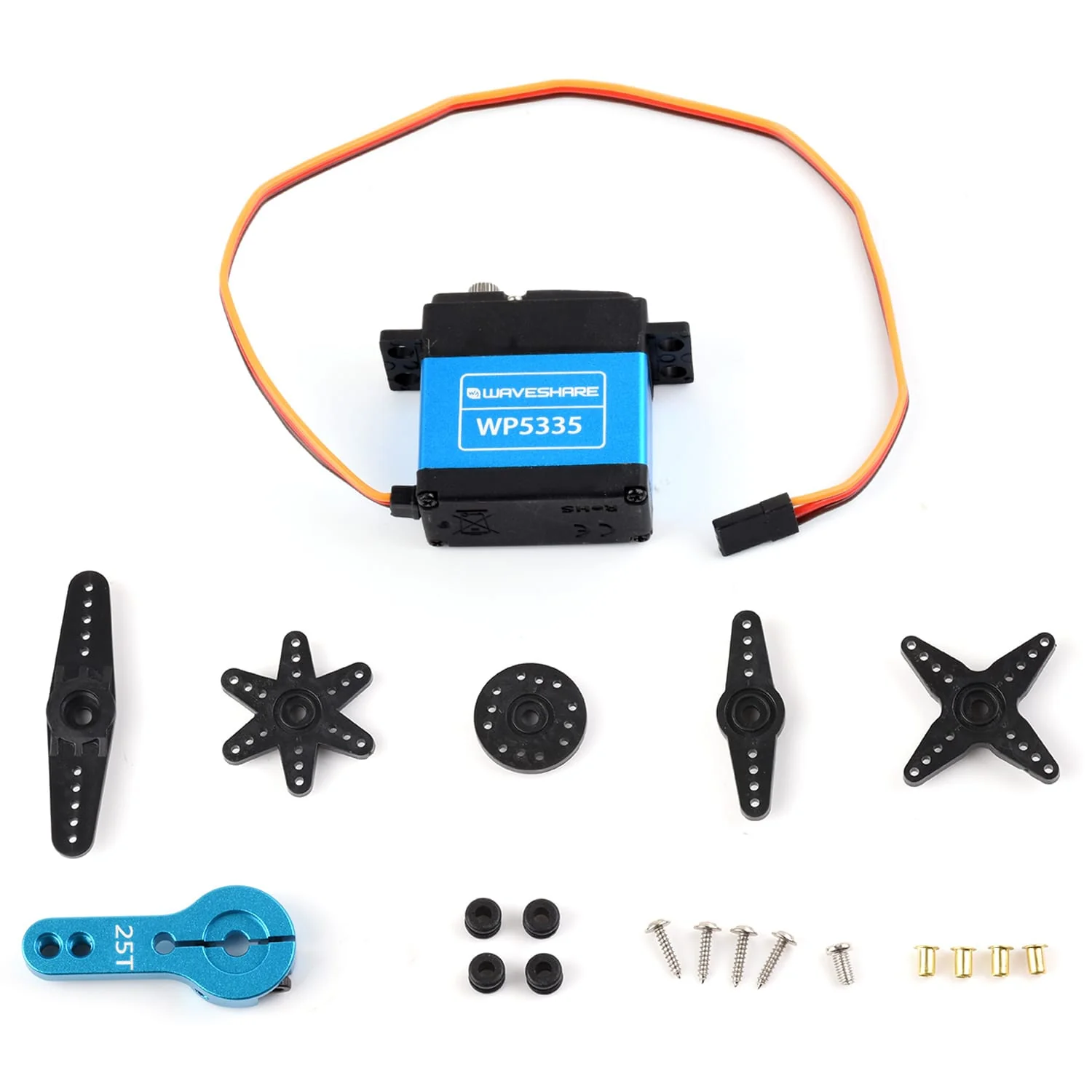

Package Contents

• 1x WP5335 35kg.cm Steel Gear High Torque 180° Digital Servo
• 6x Servo horns
• 1x Fixings pack
