26 Pin Female Header [Discontinued]

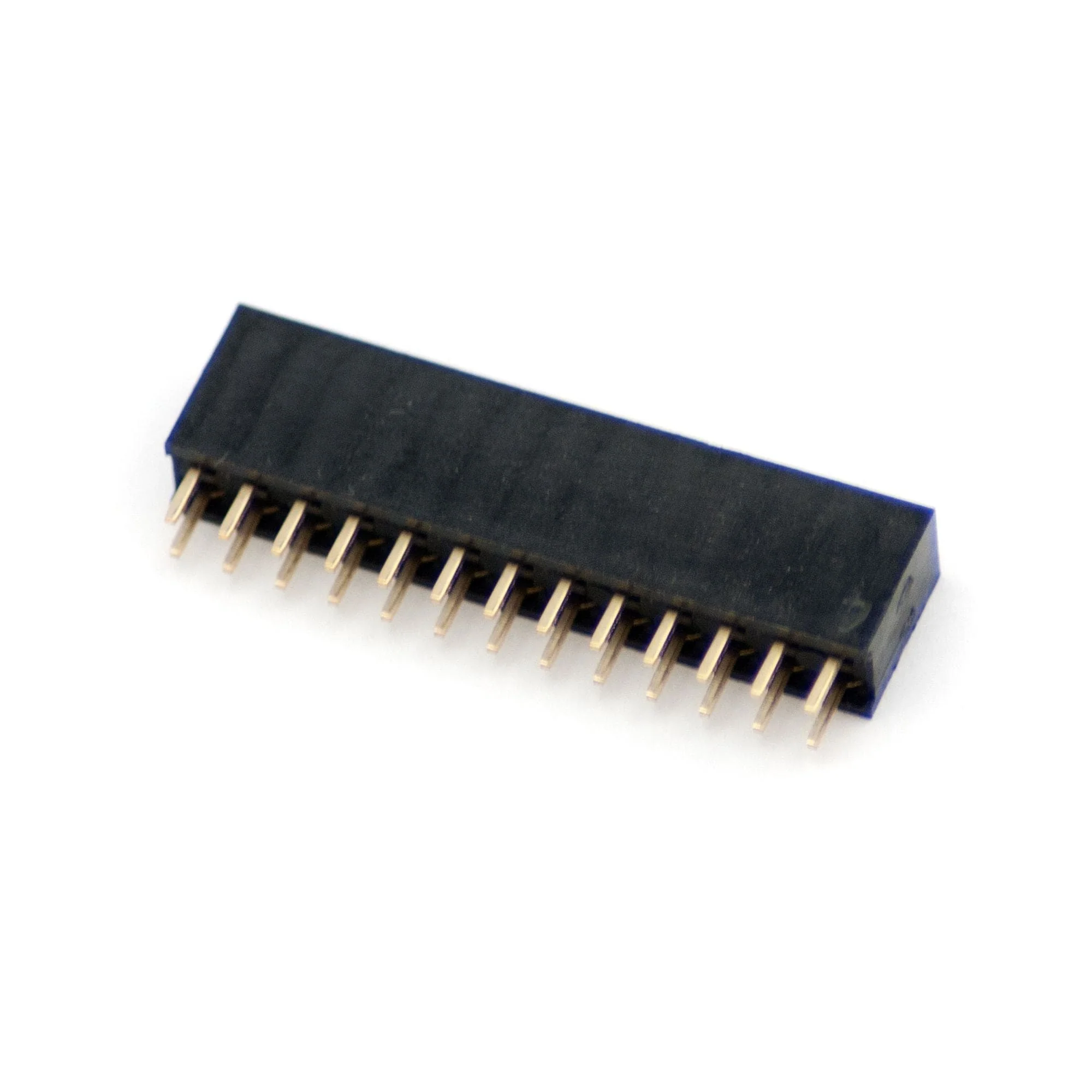

Product image 1

26 Pin Female Header [Discontinued]

The Raspbery Pi 26 Pin (2 x 13) Female Header is designed to be soldered onto a PCB. It can then used to plug in a 26 Pin GPIO device such as a Raspberry Pi or breakout board.

Each header sits approximately 8.5mm above the PCB once installed.

Features:

  • Gold Plated 26 Pin Double Row (2x13) Socket Connector
  • Extension for the Raspberry Pi GPIO Connectors
  • Dimensions (L x W x H) 34.0mm x 5mm x 11.7mm (including pins)
  • Pitch 2.54mm
  • Contact Resistance Max 20 m?
  • Nominal Current 3A
  • Fully Tested on the Raspberry Pi Model B

Downloads

Specification Sheet

$0.41

Original: $1.36

-70%
26 Pin Female Header [Discontinued]—

$1.36

$0.41

Product Information

Shipping & Returns

Description

The Raspbery Pi 26 Pin (2 x 13) Female Header is designed to be soldered onto a PCB. It can then used to plug in a 26 Pin GPIO device such as a Raspberry Pi or breakout board.

Each header sits approximately 8.5mm above the PCB once installed.

Features:

  • Gold Plated 26 Pin Double Row (2x13) Socket Connector
  • Extension for the Raspberry Pi GPIO Connectors
  • Dimensions (L x W x H) 34.0mm x 5mm x 11.7mm (including pins)
  • Pitch 2.54mm
  • Contact Resistance Max 20 m?
  • Nominal Current 3A
  • Fully Tested on the Raspberry Pi Model B

Downloads

Specification Sheet
