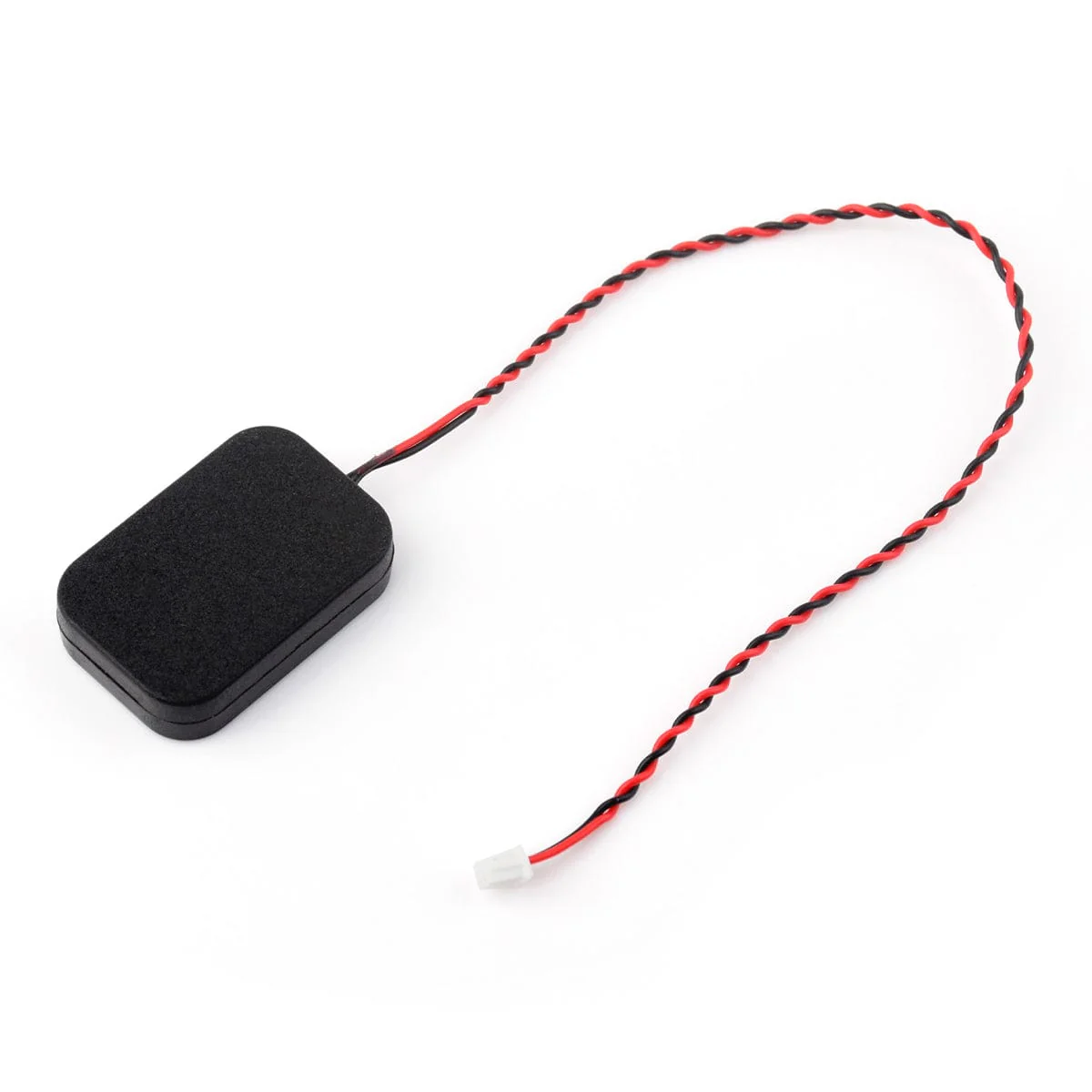

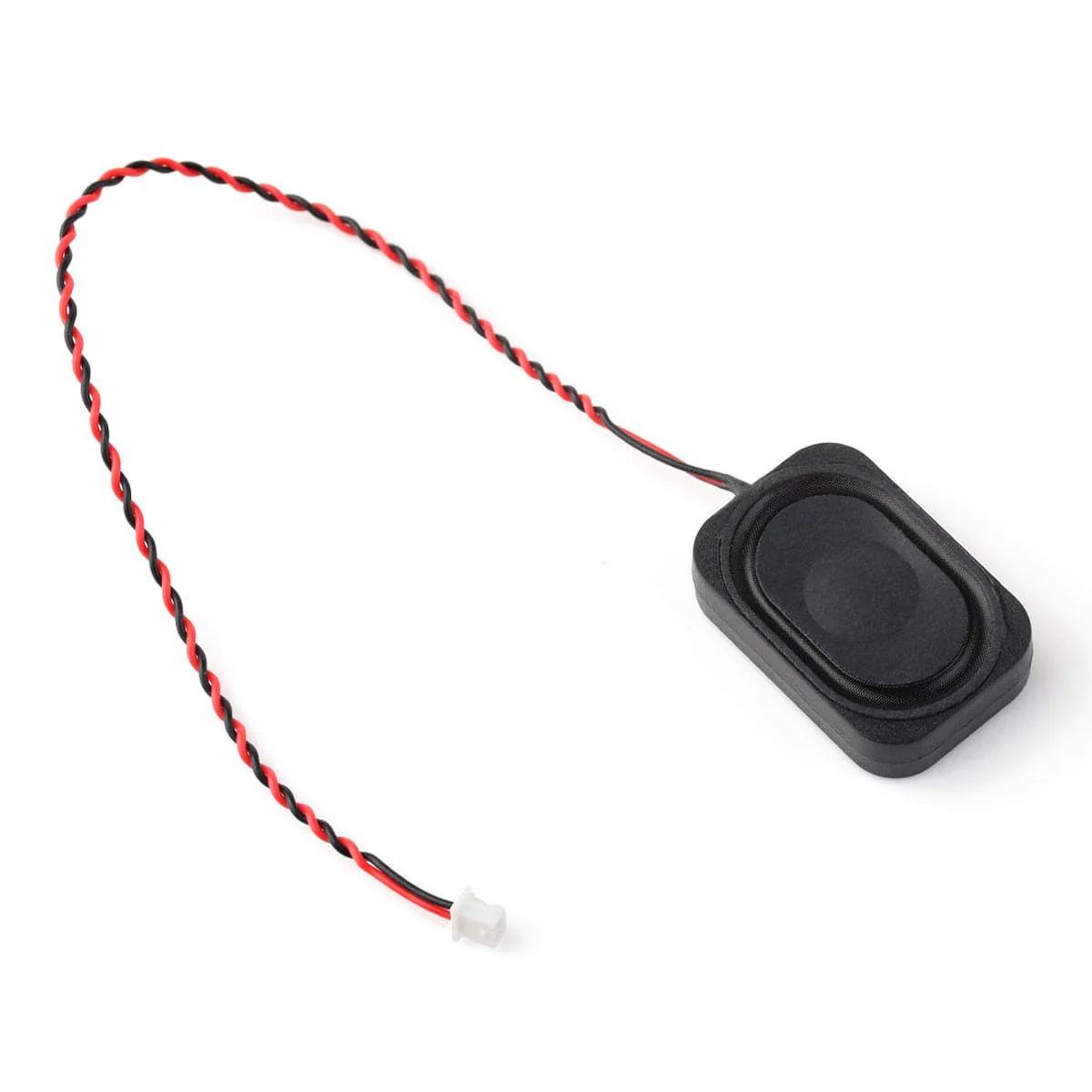

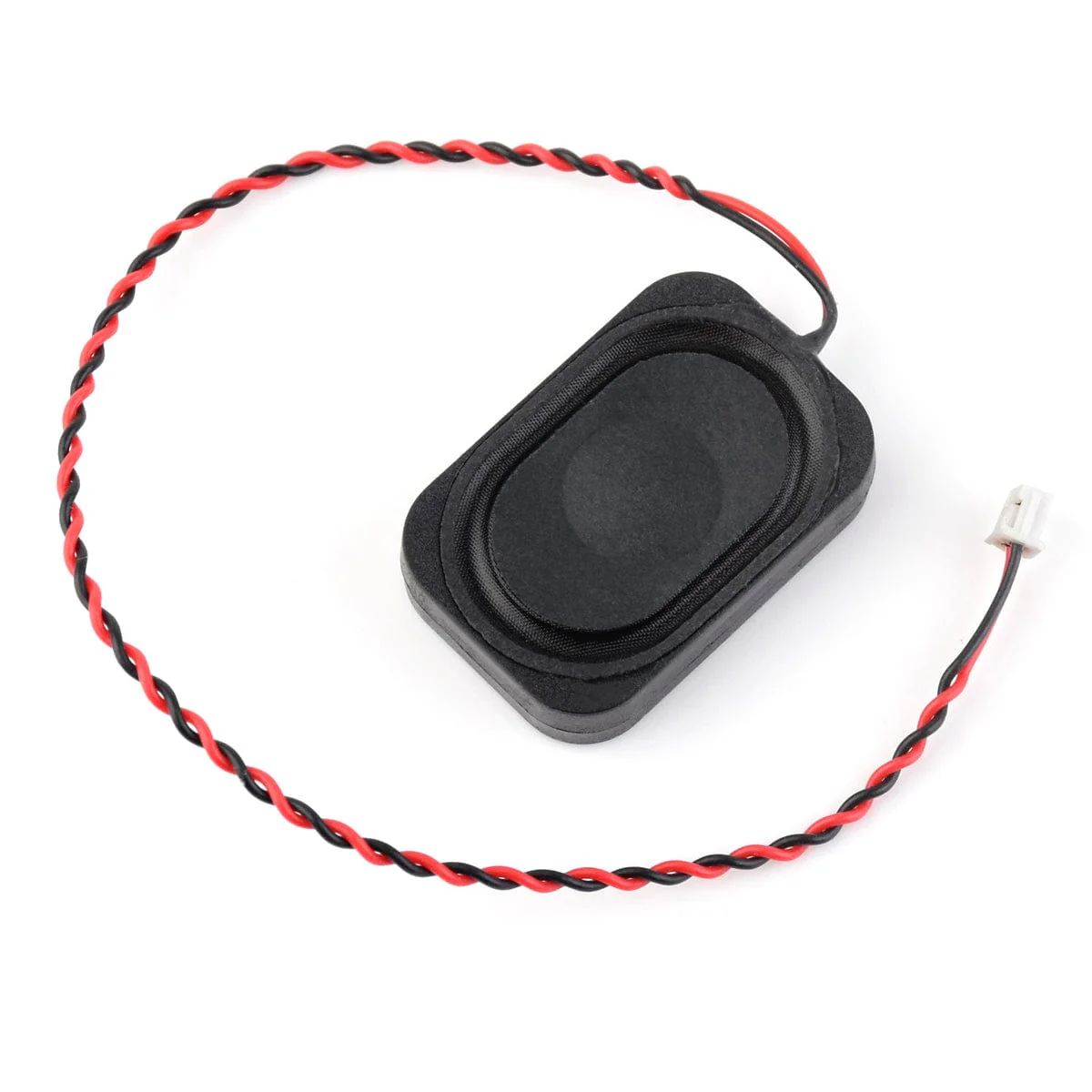

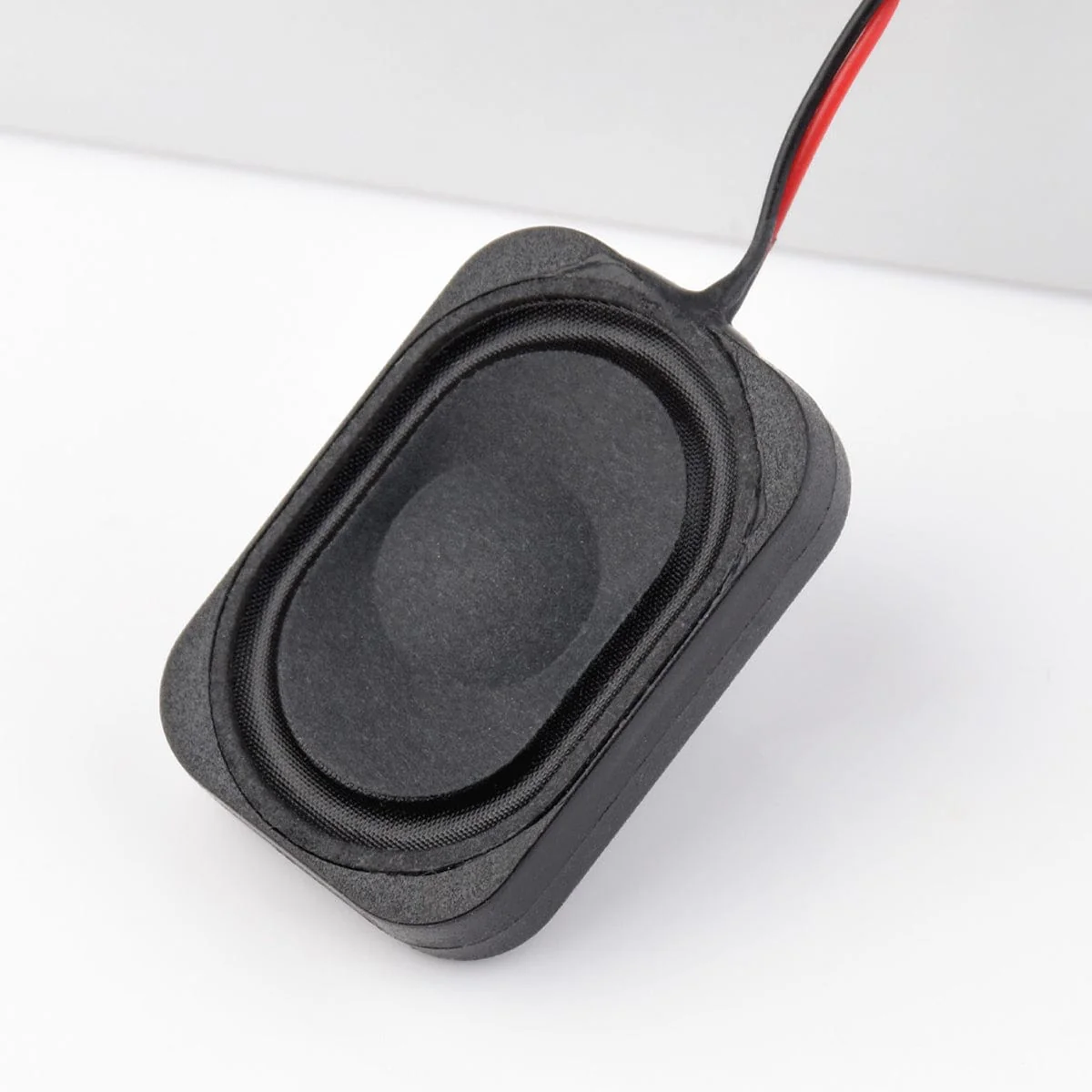

20 x 30mm Cavity Speaker (B) with PH1.25 Connector (8Ω 2W)
This speaker will make a great audio addition to your next project! It has a built-in sound cavity that provides clear audio across a frequency range of 0 to 20KHz. With an impedance of 8Ω and a power capacity of 2W, it is easy to use with many different projects.
The speaker connects via a 2-pin PH1.25 connector with a 120mm cable and operates between -20 to 55°C. Its small dimensions make it easy to integrate into various devices.

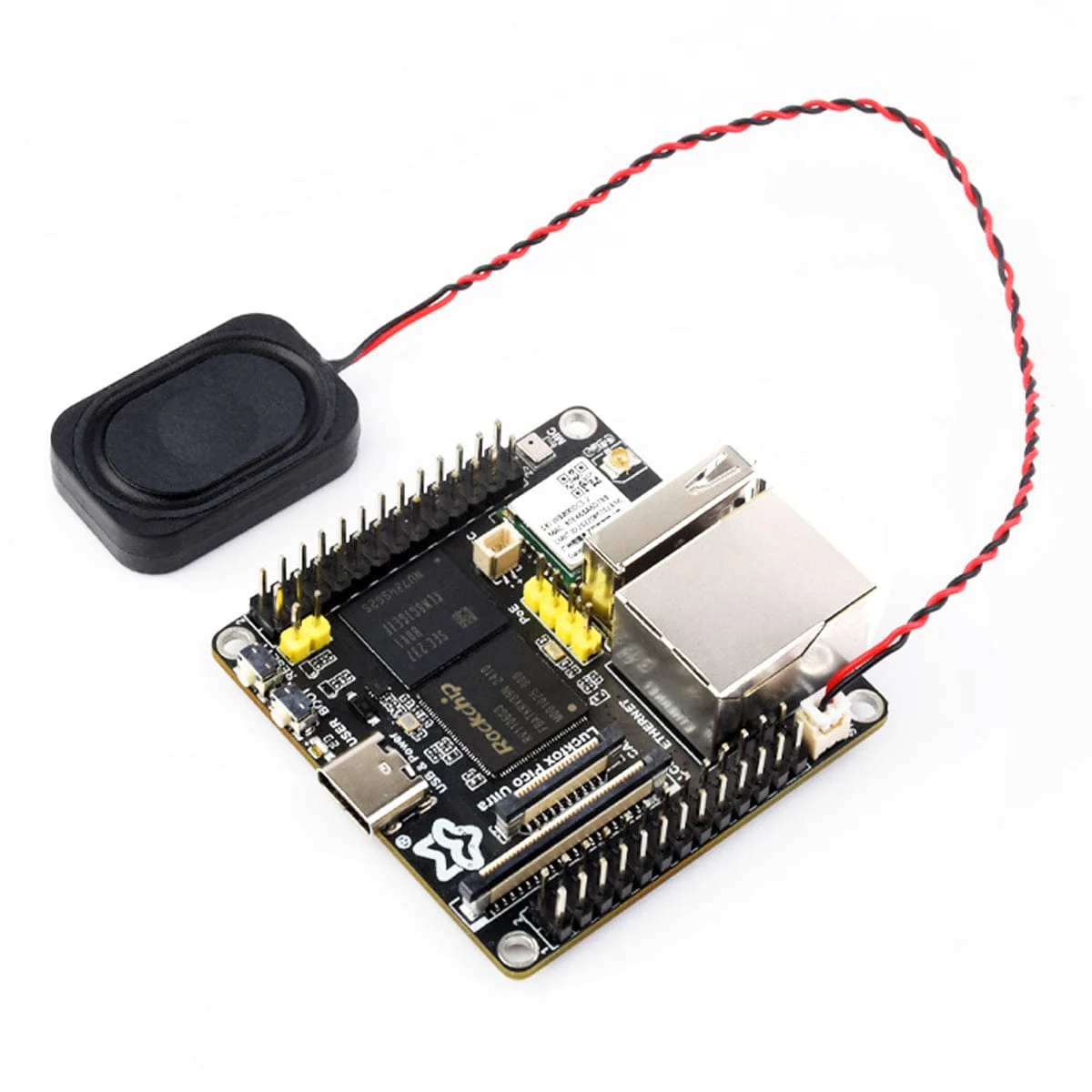

The board is NOT included
Note: Please make sure your board has a speaker connector on it that will fit a 2-pin PH1.25 cable before purchasing
Specifications
| Frequency Band | 0 ~ 20KHz |
| Impedance | 8 ± 20%Ω |
| Power | 2W |
| Operating Temperature | -20 ~ 55℃ |

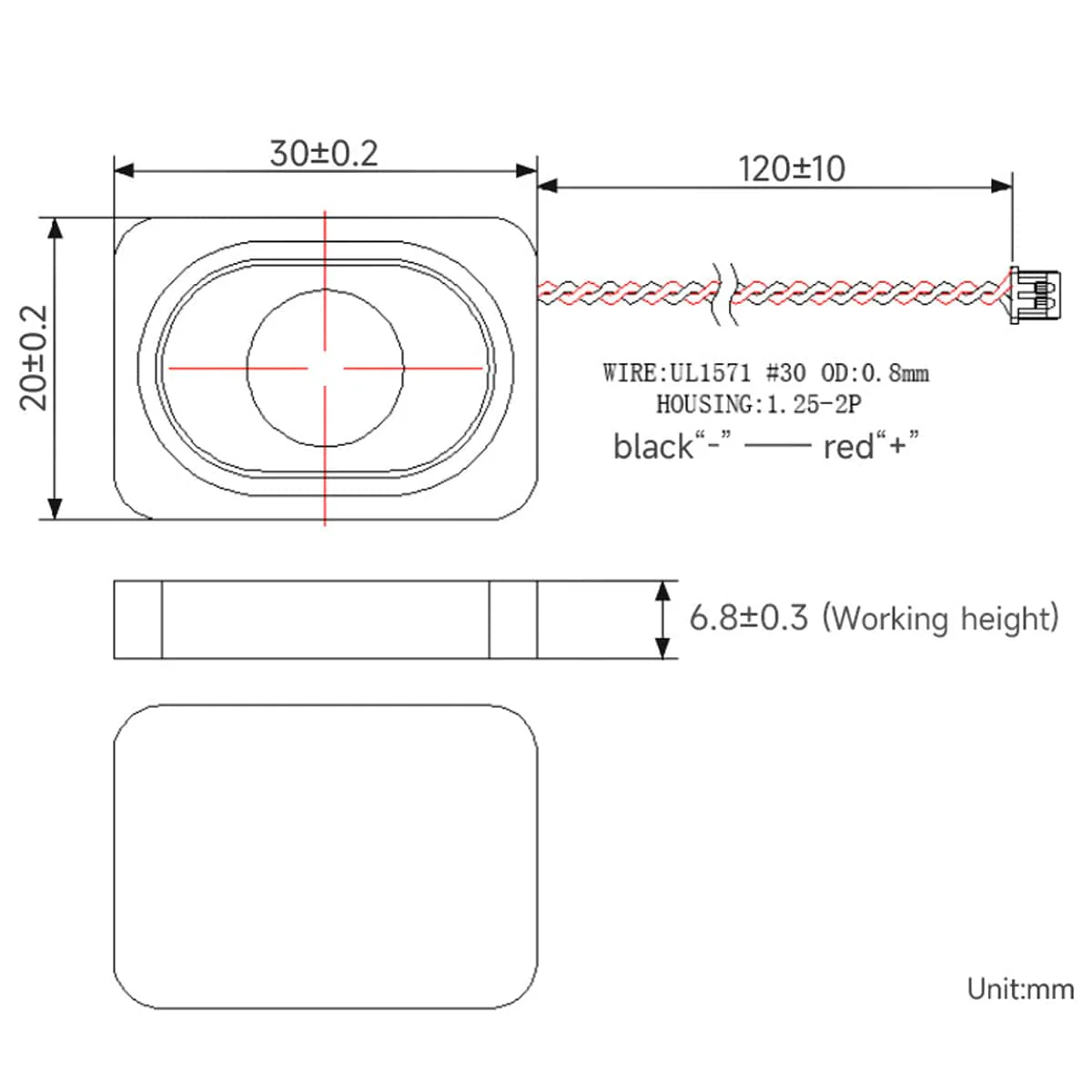

| Wire Specifications | 2-pin PH1.25 connector, approx. 120mm cable length |
| Size | 20 x 30 x 6.8 mm |
Package Contents
- 1x 20 x 30mm 8Ω 2W Cavity Speaker
