2.4" LCD Display Module (240x320)

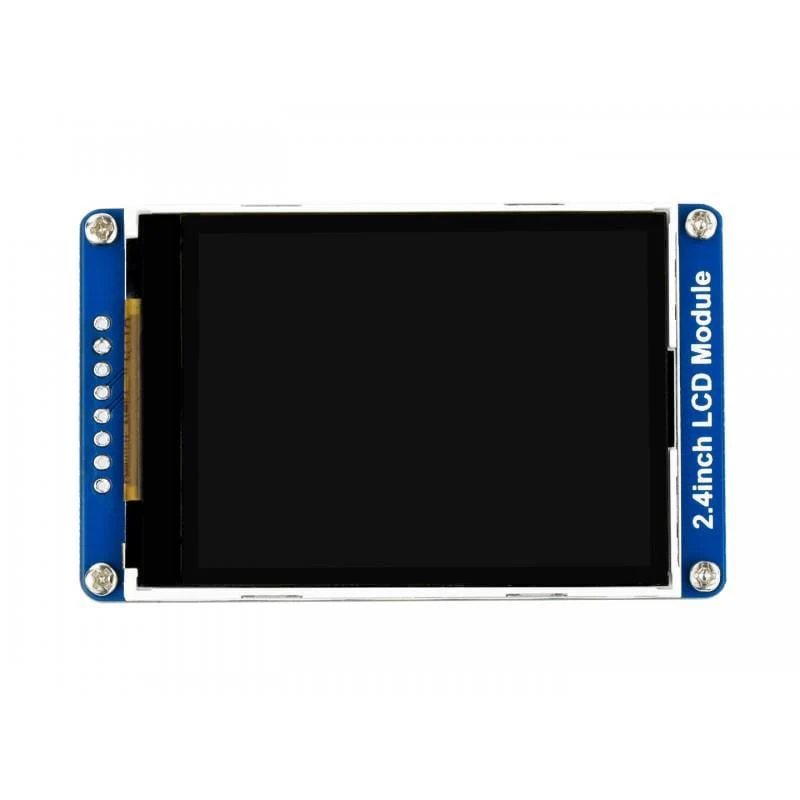

This 2.4" LCD TFT module from Waveshare is a great way to add a small display to your project.

The display has a 240x320 resolution and offers 65K RGB colours. The module is controlled via a simple 4-wire SPI interface thanks to the embedded ILI9341 driver.

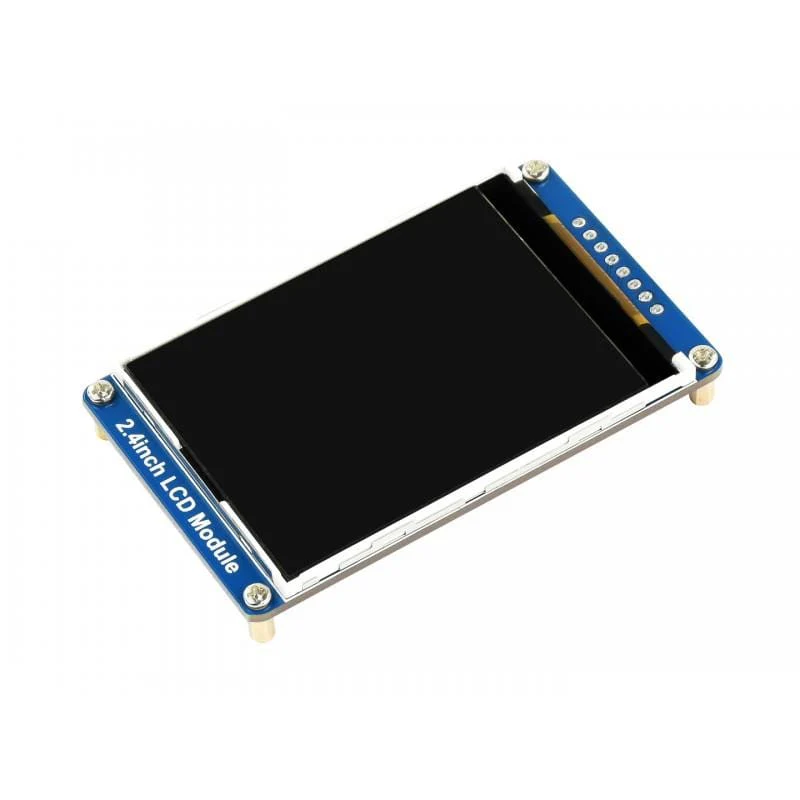

The handy mounting holes make it easy to incorporate into a custom panel or 3D printed enclosure, and the online development resources make it easy to get up and running on a Raspberry Pi or Arduino board.

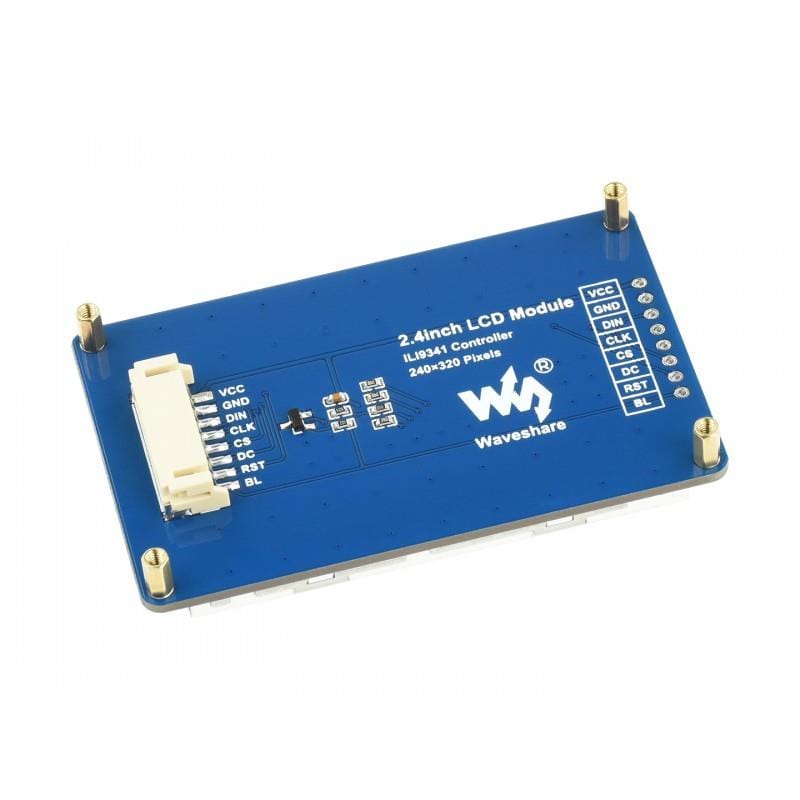

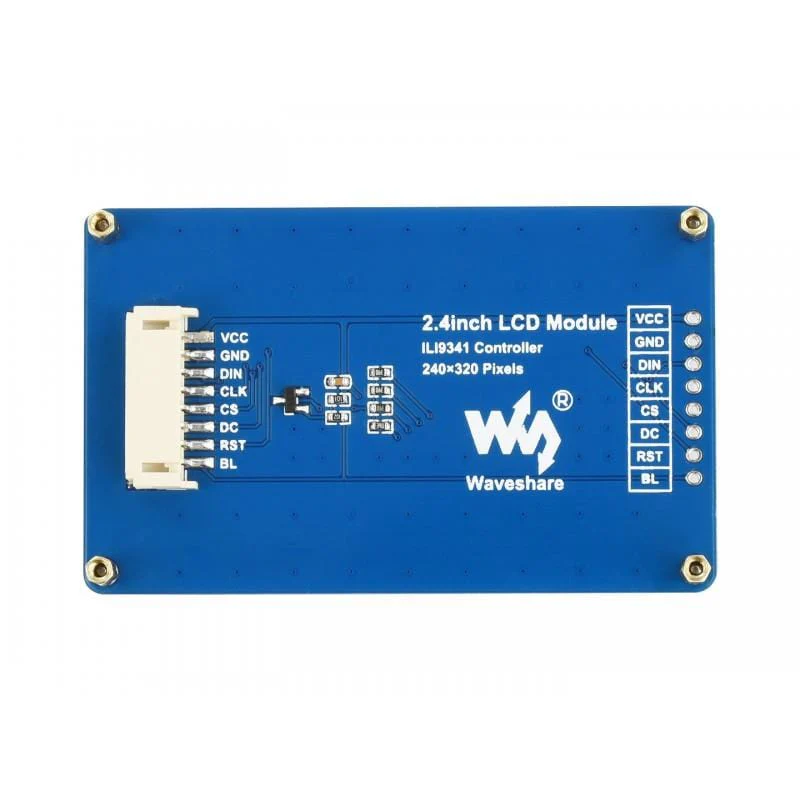

A 20cm PH2.0 8-pin cable is included, ready to connect to your favourite microcontroller.

Features

• 240×320 resolution

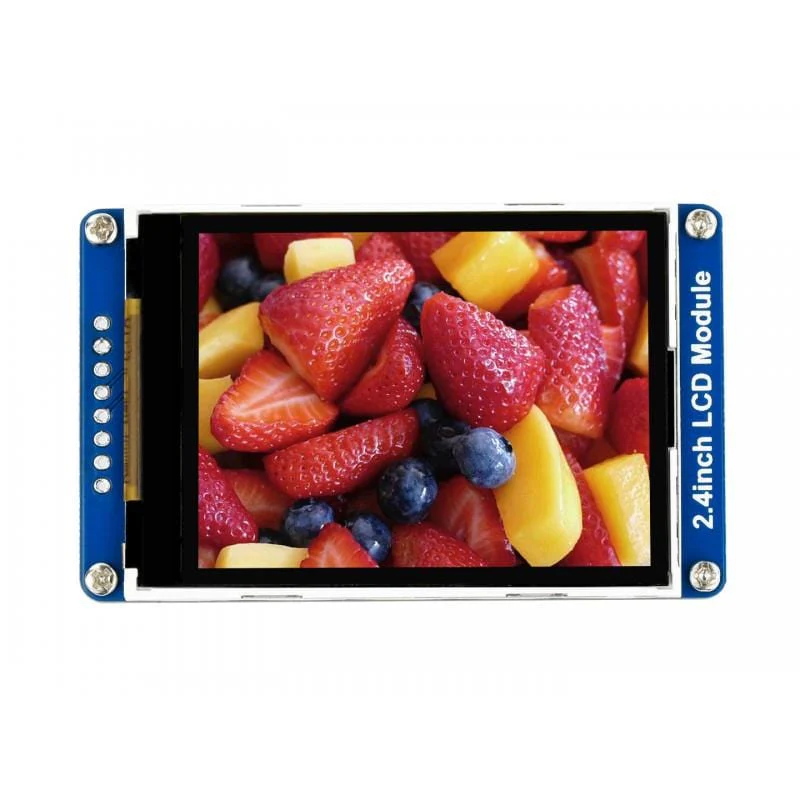

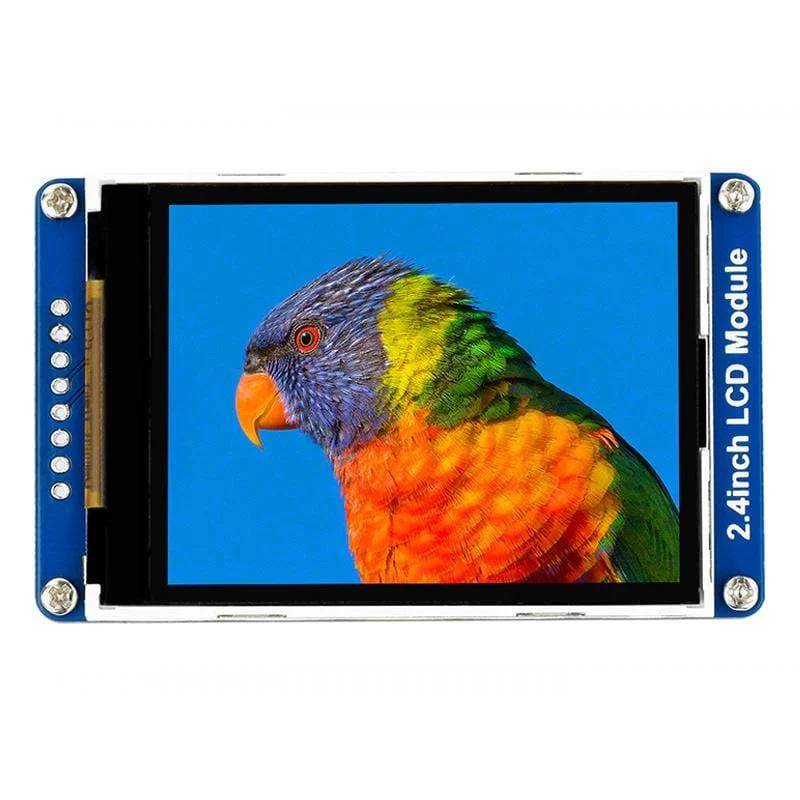

• 65K RGB colours - clear and colourful
• SPI interface - minimizes required IO pins
• Online development resources (examples for Raspberry Pi/Arduino)
• Mounting holes
• 70.50mm x 43.30mm

Specifications

• Operating Voltage: 3.3V/5V
• Resolution: 240x320 pixels
• Communication Interface: 4-wire SPI
• Display Size: 36.72 × 48.96mm
• Display Panel: TFT
• Pixel Size: 0.153 × 0.153mm
• Driver: ILI9341

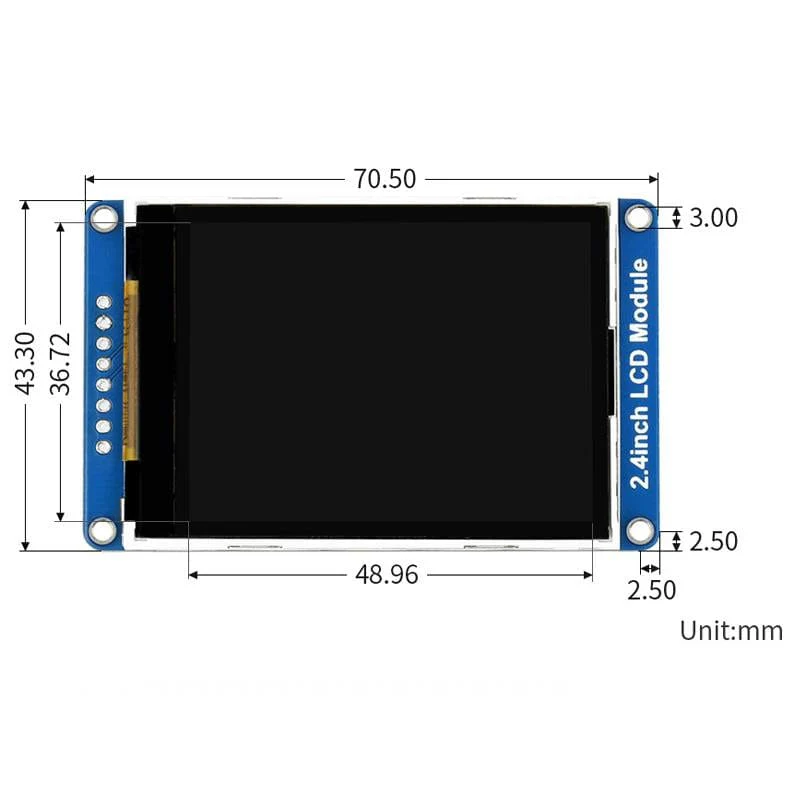

• Dimensions: 70.50 × 43.30mm

Resources

• Product Wiki & User Guide

Wiring Examples

Package Contents

• 1x 2.4" LCD Module
• 1x PH2.0 8-pin 20cm cable
