10 Segment Light Bar Graph LED Display - Blue (KWL-R1025BB)

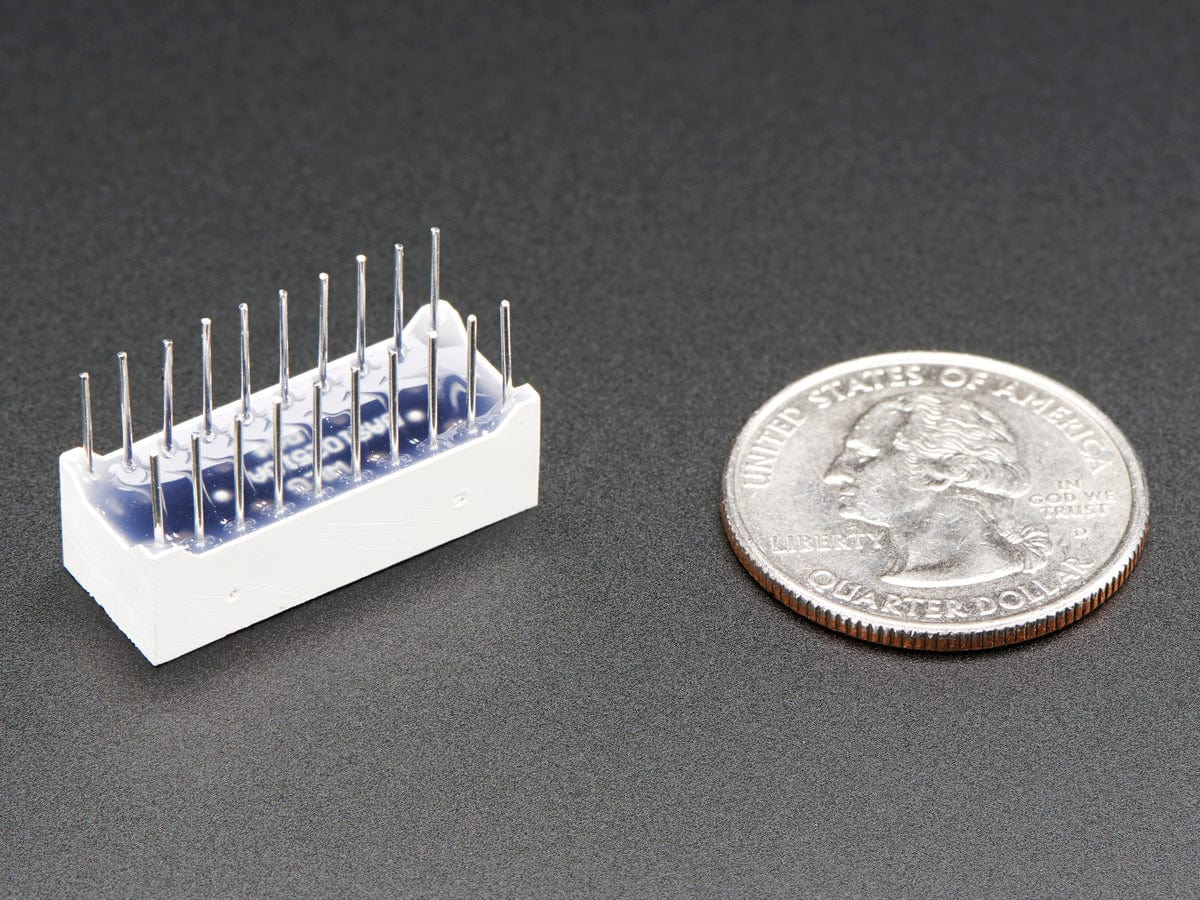

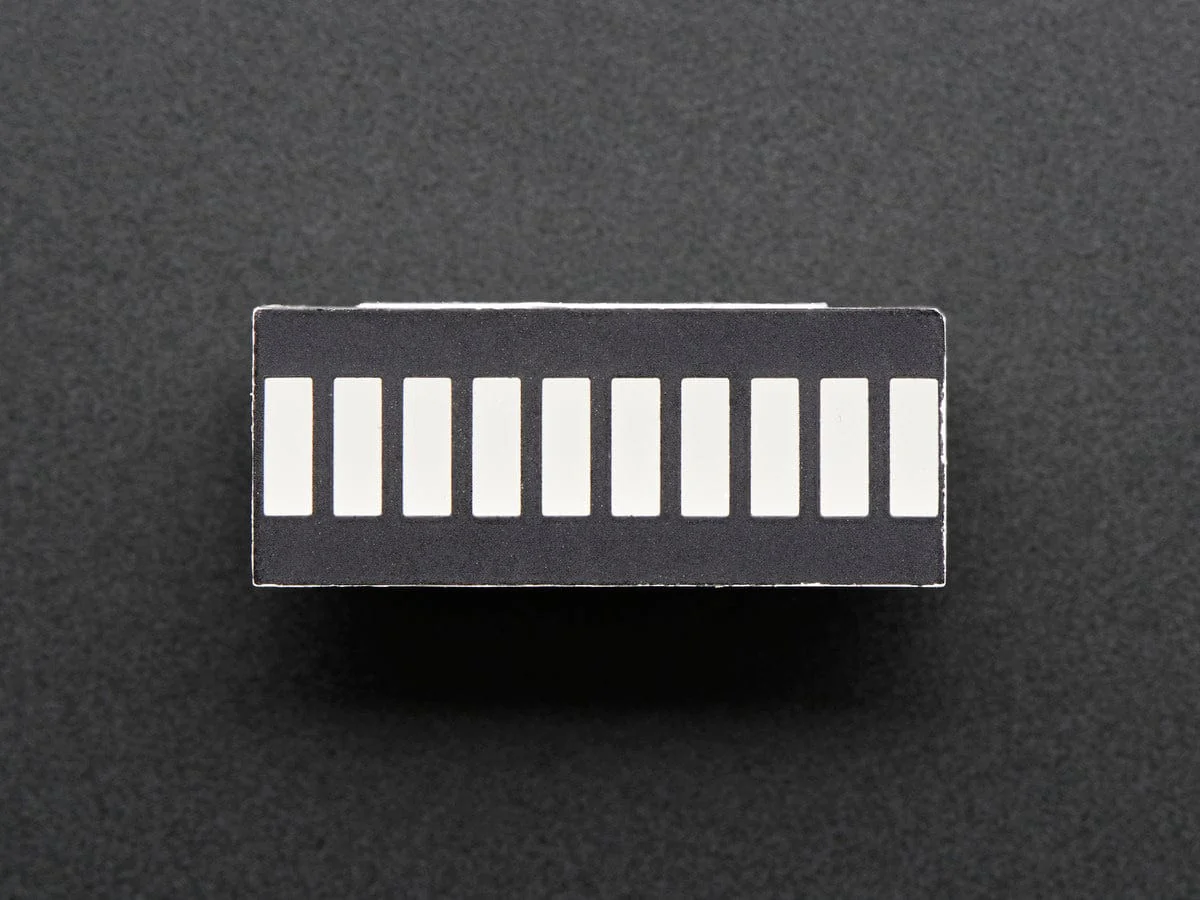

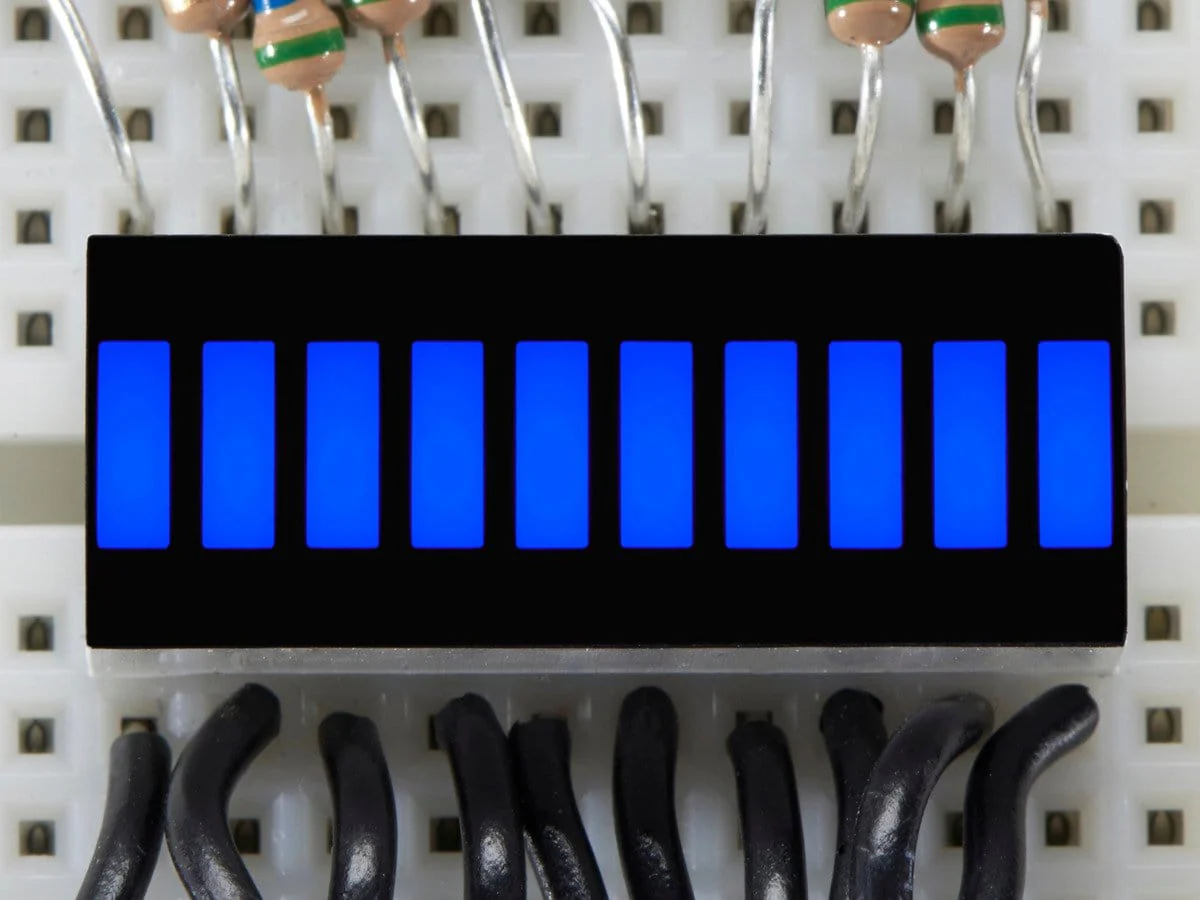

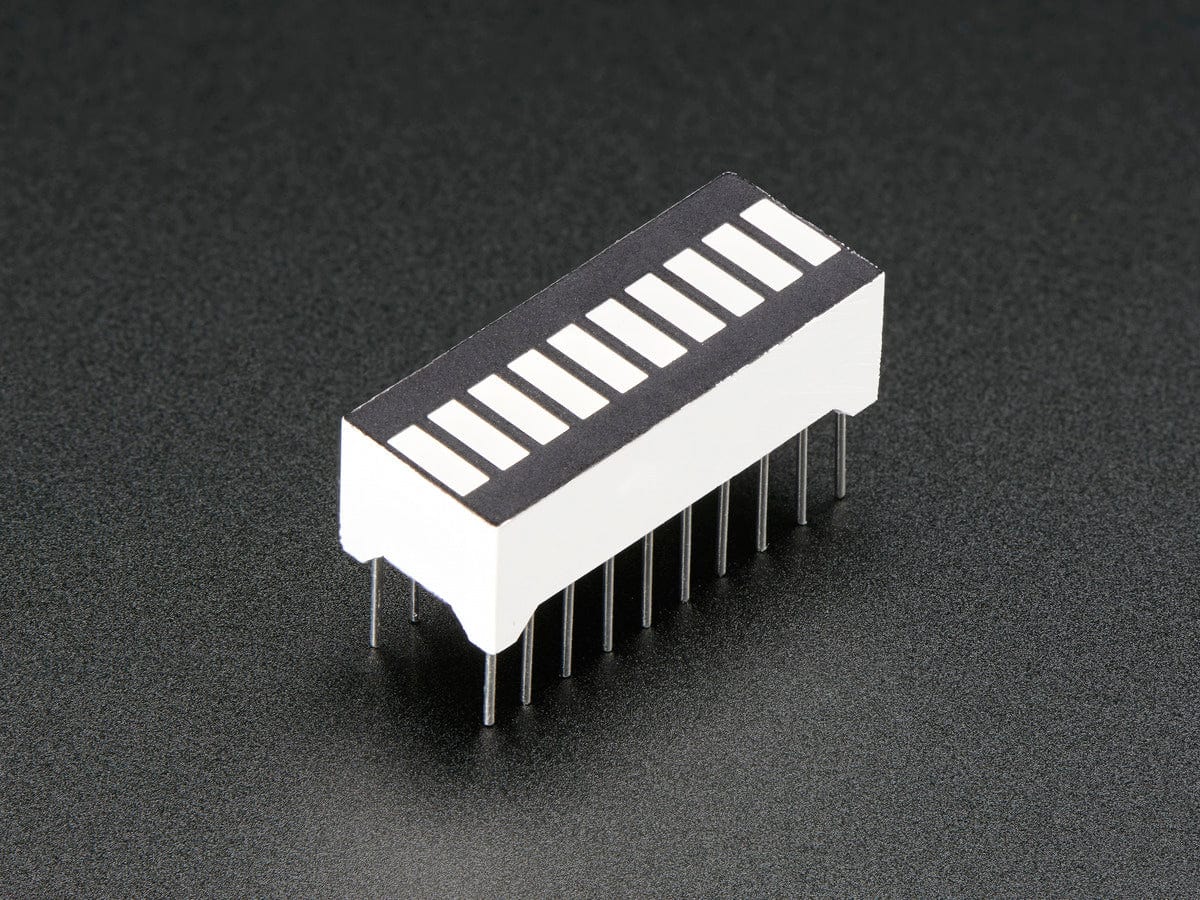

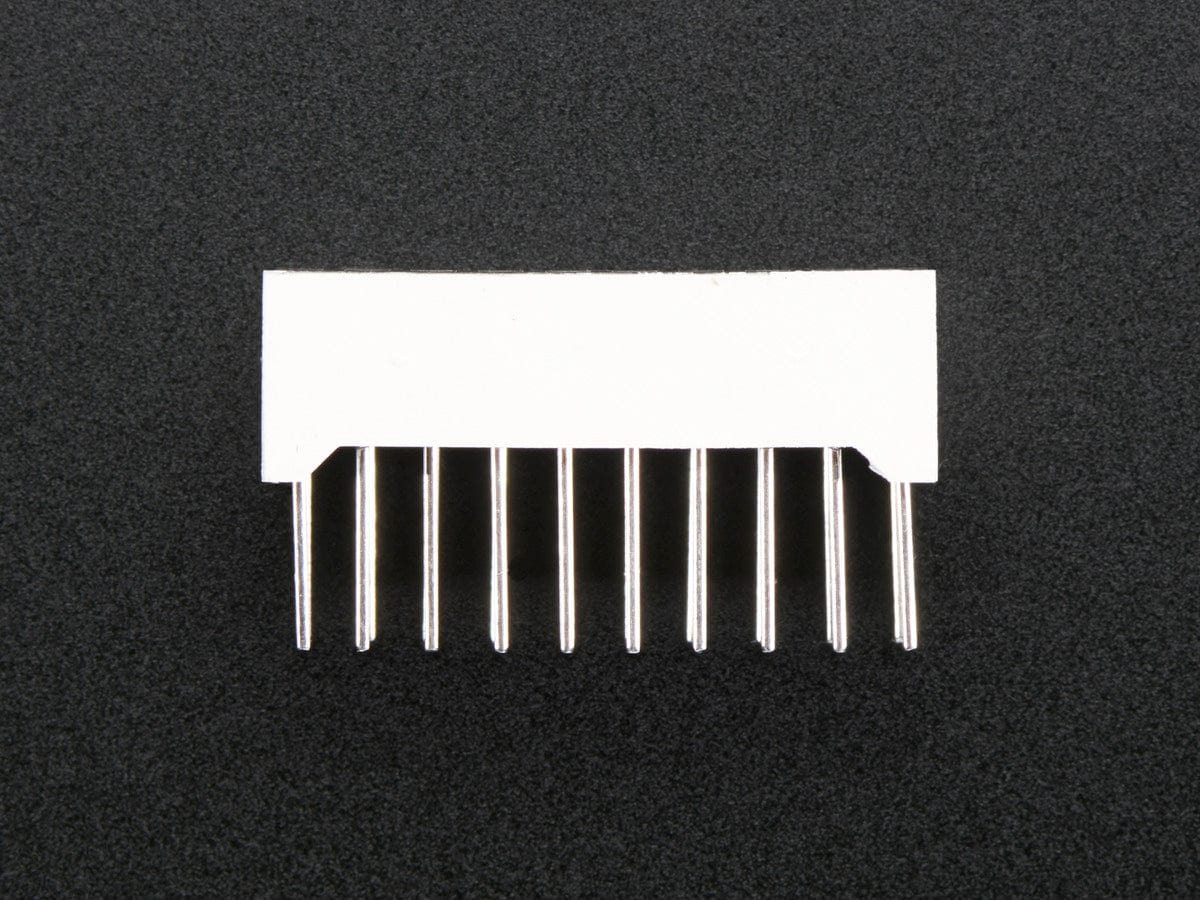

Make a small linear display with a glowing blue color using this elegant LED bargraph. Only 1" long, it is quite visible but not so large it wont plug into a breadboard! 10 LEDs are contained in the plastic body. This display is bright, beautiful and funky with nice diffused rectangular lenses for a striking look. There are 20 pins,10 on each side, with 0.1" spacing so you can easily plug it into a breadboard with plenty of space for wiring left over.
There is a playground article about bargraph displays but that one is for non-multiplexed displays. You should also check out the tutorials introducing matrices for ideas on how to drive a multiplexed bargraph.
Technical Details
Datasheet
Dimensions:
- 25.5mm x 10mm x 6.5mm / 1" x 0.4" x 0.25"
- Height with Pins: 14.5mm / 0.6"
- Weight: 2.5g
Original: $2.59
-70%$2.59
$0.78Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Make a small linear display with a glowing blue color using this elegant LED bargraph. Only 1" long, it is quite visible but not so large it wont plug into a breadboard! 10 LEDs are contained in the plastic body. This display is bright, beautiful and funky with nice diffused rectangular lenses for a striking look. There are 20 pins,10 on each side, with 0.1" spacing so you can easily plug it into a breadboard with plenty of space for wiring left over.
There is a playground article about bargraph displays but that one is for non-multiplexed displays. You should also check out the tutorials introducing matrices for ideas on how to drive a multiplexed bargraph.
Technical Details
Datasheet
Dimensions:
- 25.5mm x 10mm x 6.5mm / 1" x 0.4" x 0.25"
- Height with Pins: 14.5mm / 0.6"
- Weight: 2.5g
