1.44" LCD Display Module for Raspberry Pi Pico (128×128)

Are you looking for a small LCD display for your next Raspberry Pi Pico project? This 1.44" TFT LCD from Waveshare might be just what you are looking for.

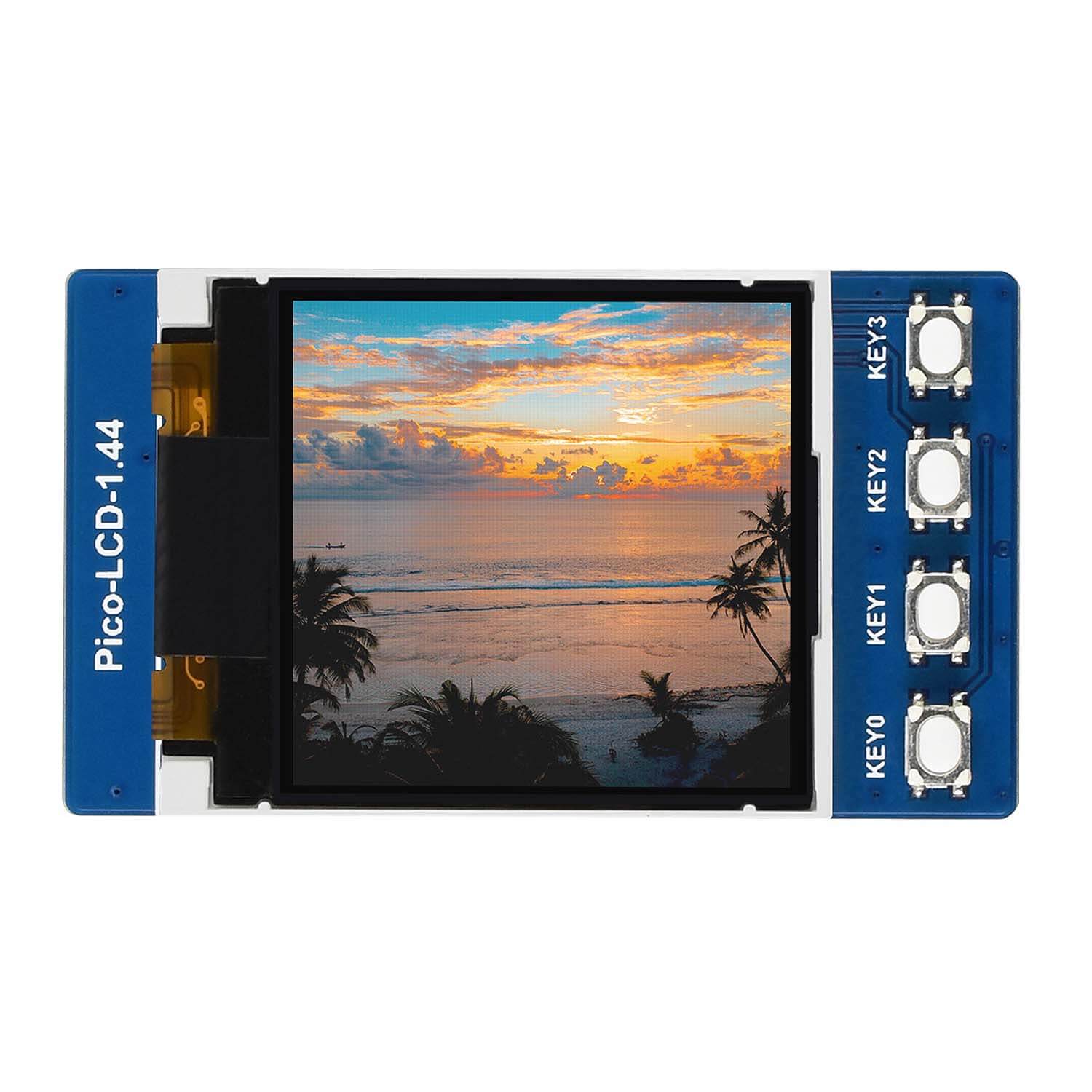

The display features a resolution of 128 x 128 pixels and is designed to plug directly onto a Raspberry Pi Pico.

Online development resources are available, which include wiring guidance and example code with additional information on the Product Wiki & Manual.

We also have our own set of tutorials teaching you how to use these displays with MicroPython:

• Colour Control
• Coding Graphics
• Advanced Text/Fonts

Also check out the PasswordVault project by Olav Schettler, that stores all your passwords securely and encrypted and can display them on the screen and type them into a password field!

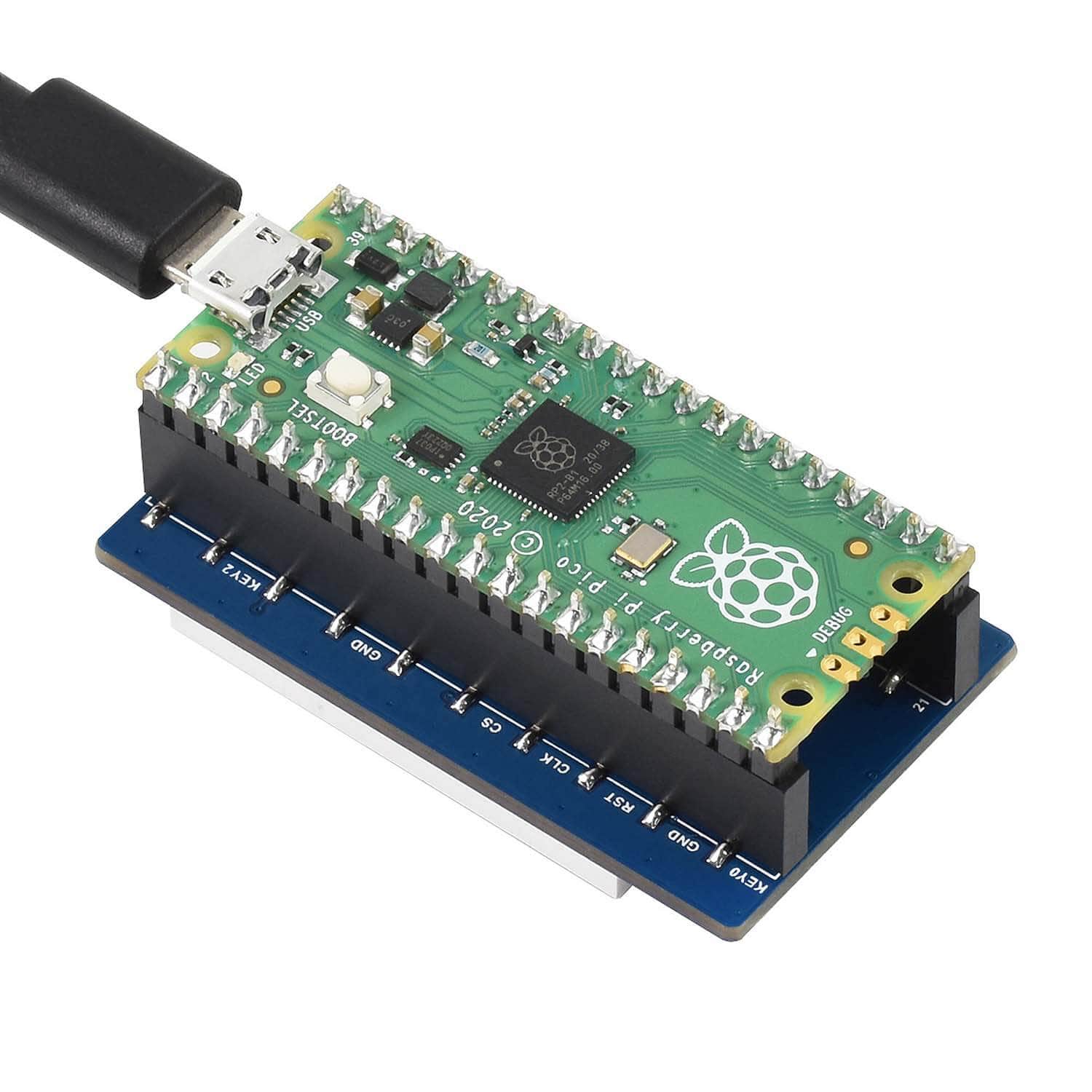

A Raspberry Pi Pico is not included - click here if you'd like to buy one. Your Pico will need to have male headers soldered to it with the pins pointing downwards (or grab one of our Pre-soldered Picos).

Features

• 128×128 resolution
• 65K RGB colours
• SPI interface requires minimal IO pins

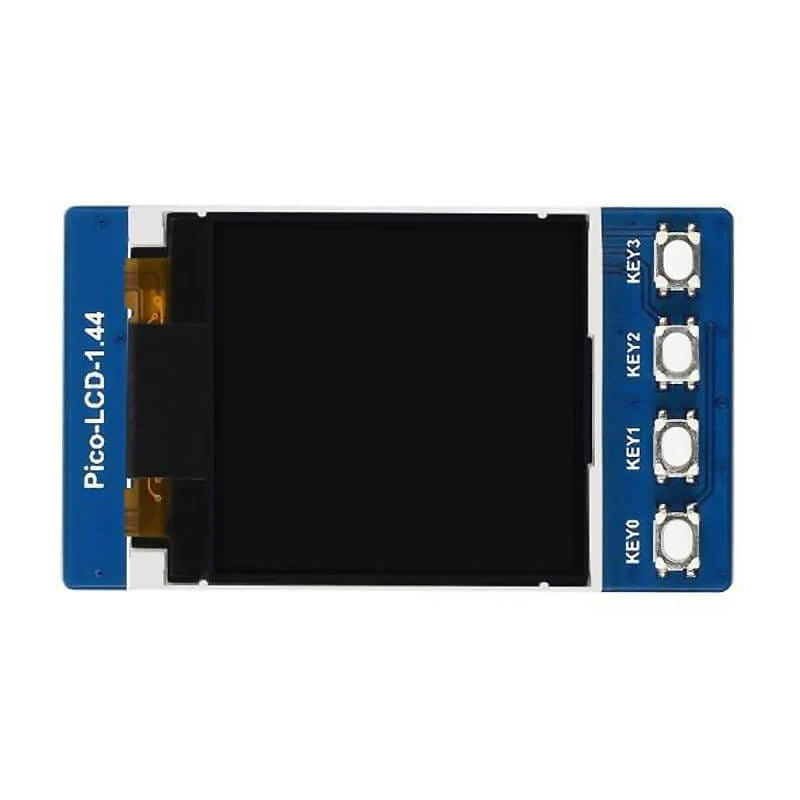

• 4x user buttons for easy interaction
• Online development resources and manual

Specifications

• Operating voltage: 3.15~5V
• Resolution: 128×128 pixels
• Communication interface: 4-wire SPI
• Display size: 25.50 × 26.50 mm
• Display panel: TFT
• Pixel size: 0.20 × 0.20 mm
• Driver: ST7735S
• Dimensions: 52.0 × 30.0 mm

Package Contents

• 1x - Pico 1.44" LCD

Resources

• Product Wiki & Manual
• The Pi Hut Tutorials:
• Colour Control
• Coding Graphics
• Advanced Text/Fonts

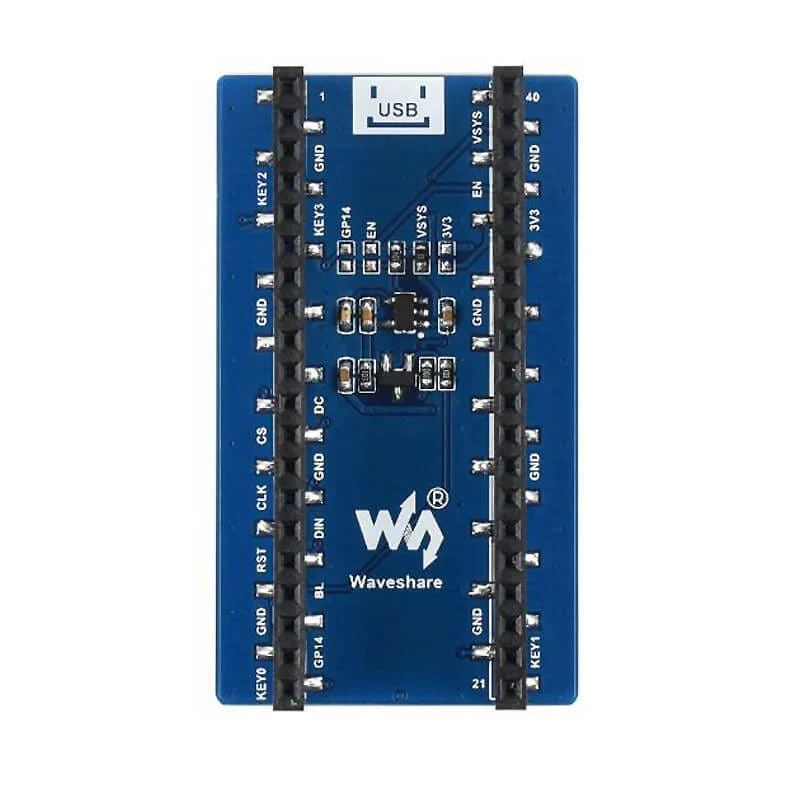

Pinout

Dimensions
