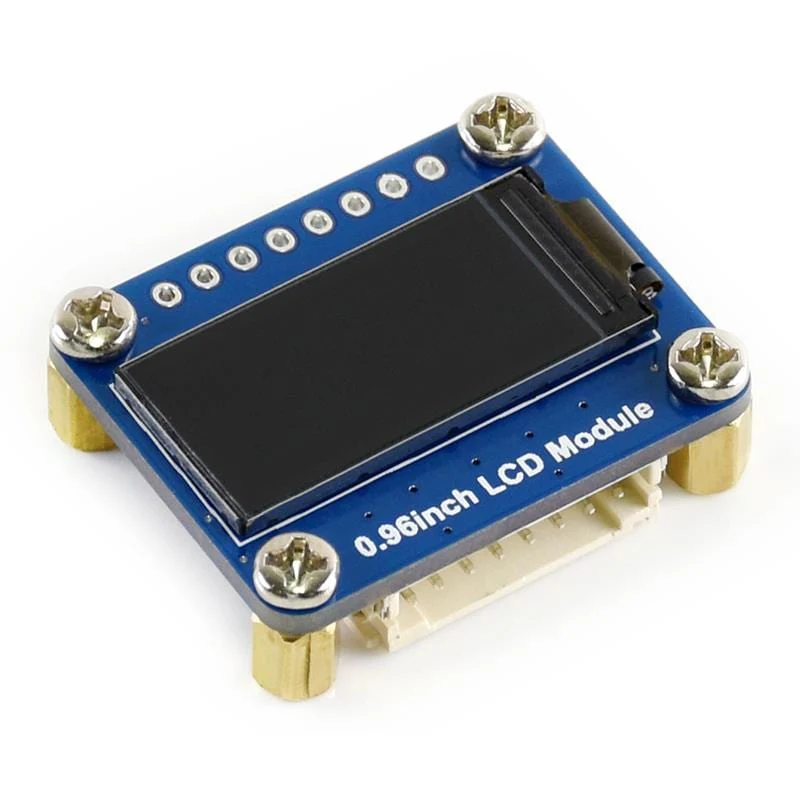

0.96" IPS LCD Display Module (160x80)

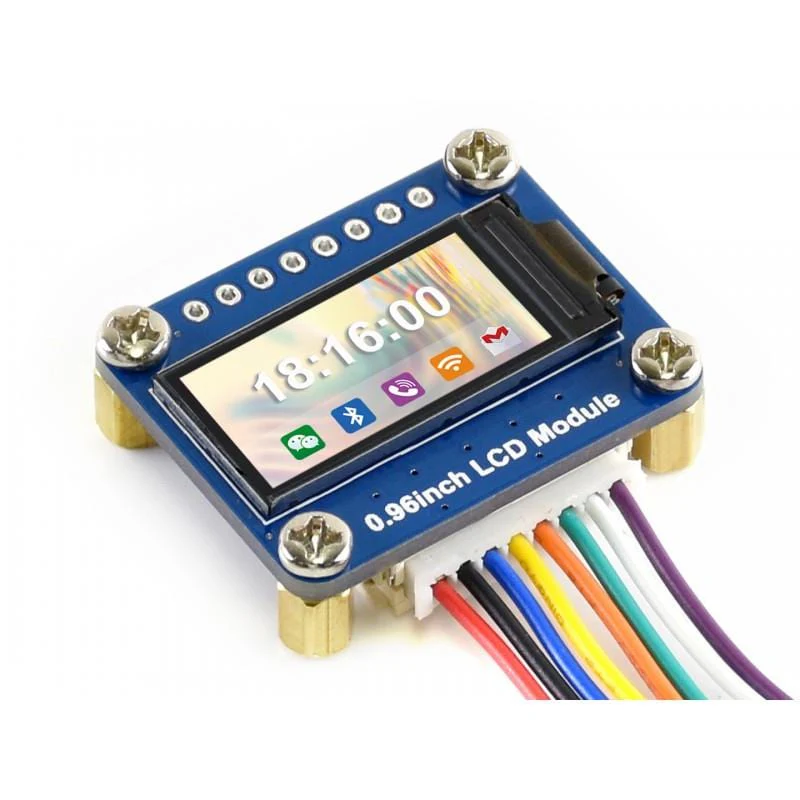

This 0.96" IPS LCD module from Waveshare is a great way to add a teeny-tiny, high-quality display to your project.

The display has a 160x80 resolution and offers 65K RGB colours via its IPS display. The module is controlled via SPI thanks to the embedded ST7735S driver.

The handy mounting holes make it easy to incorporate into a custom panel or 3D printed enclosure, and the online development resources make it easy to get up and running on a Raspberry Pi or Arduino board.

Features

• 0.96" LCD Display
• 160x80 resolution
• 65K RGB colours
• Clear and colourful display
• SPI interface minimizes required IO pins
• Supports controller boards such as Raspberry Pi and Arduino
• Online development resources (examples for Raspberry Pi/Arduino)
• Dimensions: 32.5mm x 26mm

Package Contents

• 1x 0.96" LCD Module

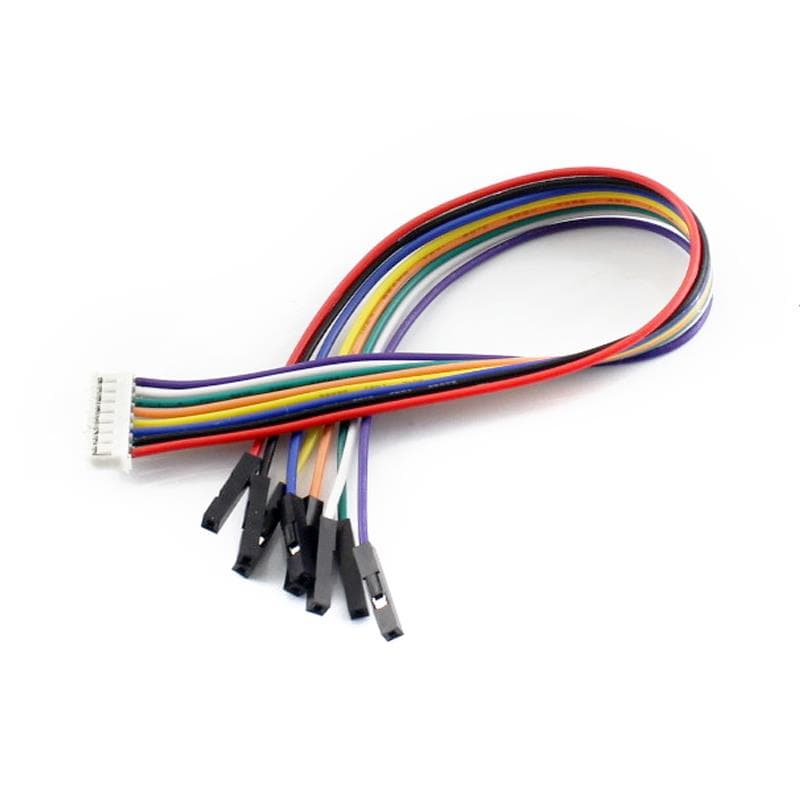

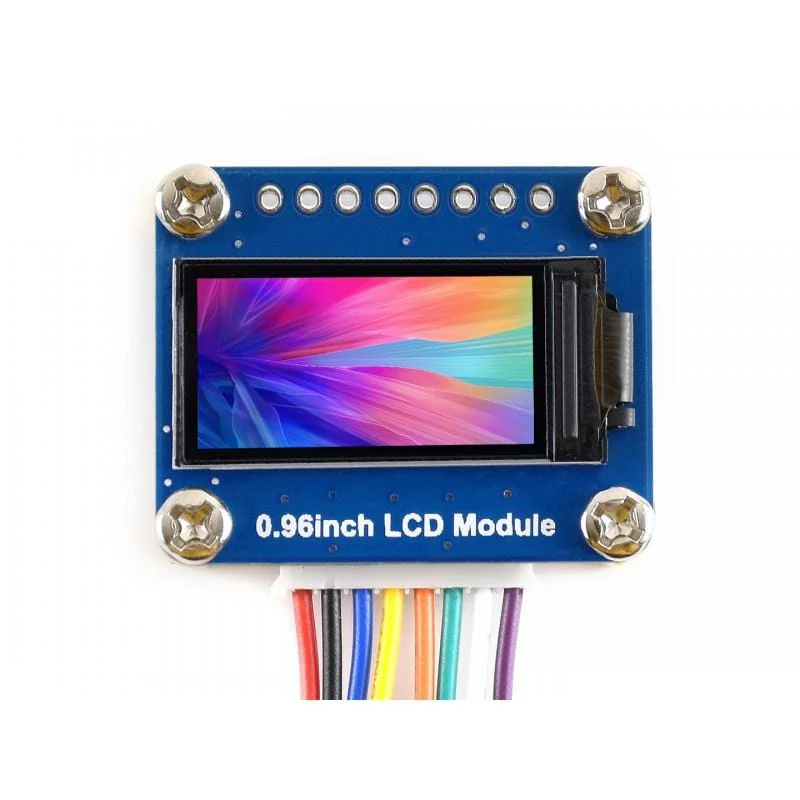

• 1x PH2.0 8-pin 20cm cable

Resources

• Product Wiki

Pinout

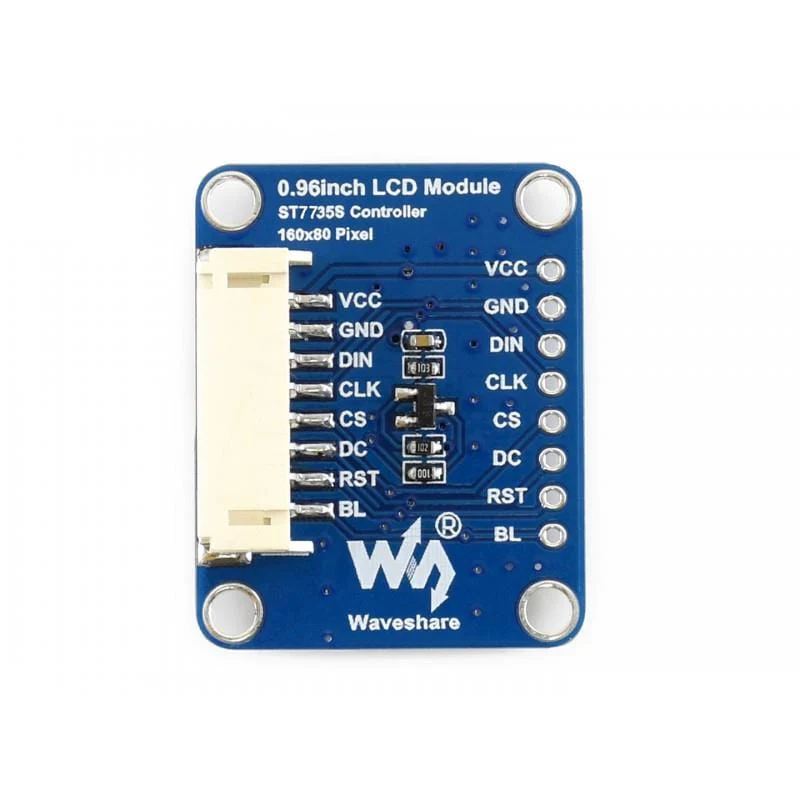

SYMBOL	DESCRIPTION
VCC	Power (3.3V input)
GND	Ground
DIN	SPI data input
CLK	SPI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active
BL	Backlight

Tech Specs

• Operating voltage: 3.3V
• Interface: SPI
• LCD type: IPS
• Display Colour: RGB, 65K Colour
• Controller: ST7735S
• Resolution: 160x80
• Backlight: LED
