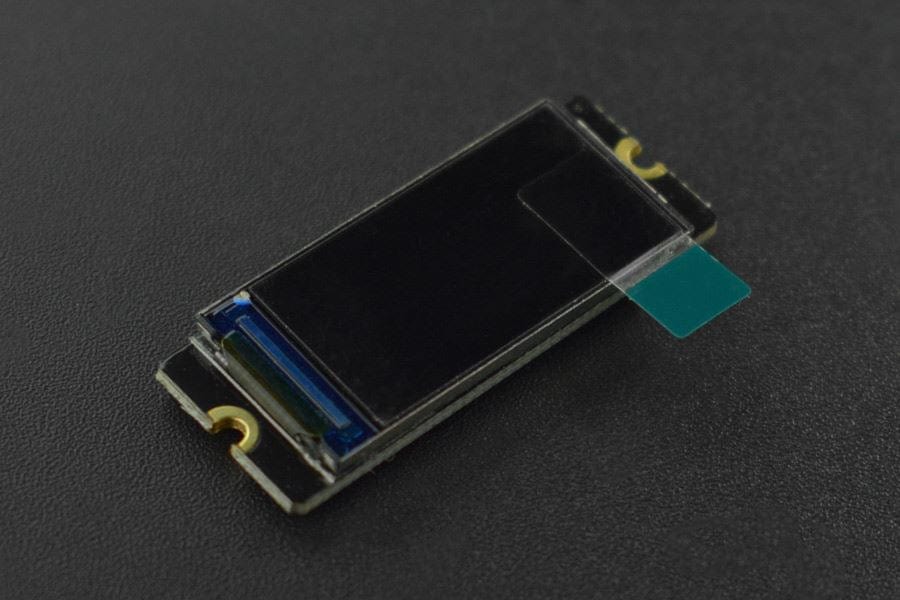

0.96" 160x80 Colour SPI TFT Display

This 0.96” TFT screen employs an edge-to-edge design and offers a glorious 160×80 HD 16-bit colour display, suitable for wearable projects, mobile devices and smart home projects.

It supports the DFRobot GDI display interface and can be conveniently connected to your GDI main-controller with FPC - plug n' play and easy to wire!

Compatible with 3.3V to 5V, the display consumes less than 15mA in full-screen. It works well with controllers like Arduino UNO, ESP32, ESP8266, FireBeetle M0 and more.

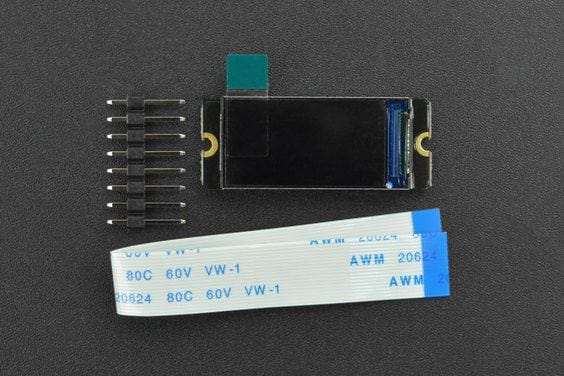

The display comes complete with a pin header and FPC cable.

• TFT display

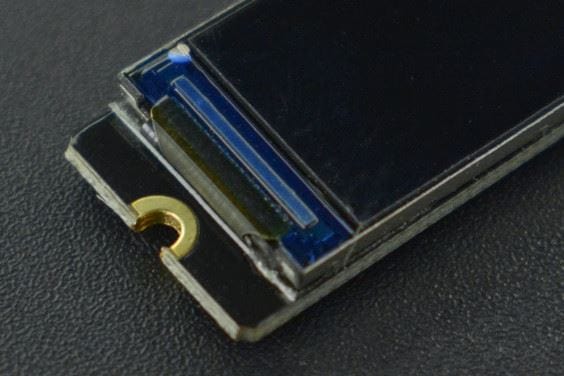

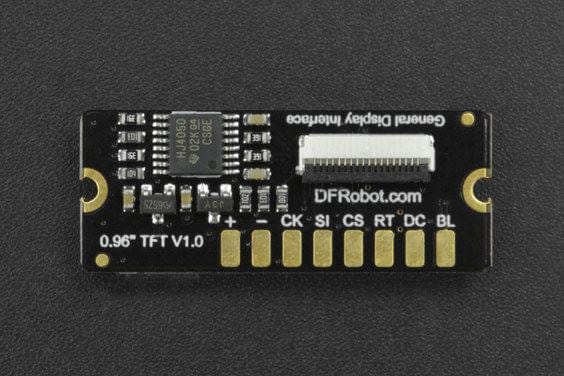

• GDI interface, no soldering required
• Narrower PCB, easy to integrate into smaller projects

• Operating Voltage: 3.3V-5V
• IPS Viewing Angles: 60/ 60/ 60/ 60
• Color Depth: 16-bit (RGB565)
• Pixels: 160x80
• Interface: SPI
• Driver Chip: ST7735
• Luminance: 250 (Typ) cd/m2
• Power Consumption of Full Screen: 15mA
• Operating Temperature: -30℃~+70℃
• Display Area: 10.8 x 21.7 mm/ 0.43 x 0.85"

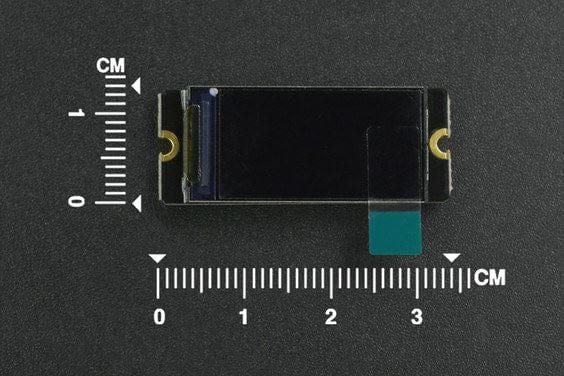

• Dimension: 13.5 x 34 mm/ 0.53 x 1.34"

• Product wiki
• Schematics
• Dimensions
• Datasheet

• 1x 0.96"160x80 Color SPI TFT Display
• 1x 2.54 Black Single Row Connector-10P
• 1x FPC0.5-18-pin Reverse Direction 10cm
