0.85" IPS LCD Display Module (128 x 128)

This 0.85" display module is ideal for small-scale projects where space is a constraint but a high-quality display is needed. The combination of an IPS panel and 65K colour depth provides a vivid and bright display. At the same time, the SPI interface makes it straightforward to integrate with most hardware setups, and the GC9107 driver is reliable for managing the display's functions and performance.

Note: The Raspberry Pi is NOT included

Our full range of LCD display modules can be found here

Features

• 128 x 128 resolution, 65K RGB colours, clear and colourful displaying effect
• SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
• Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)

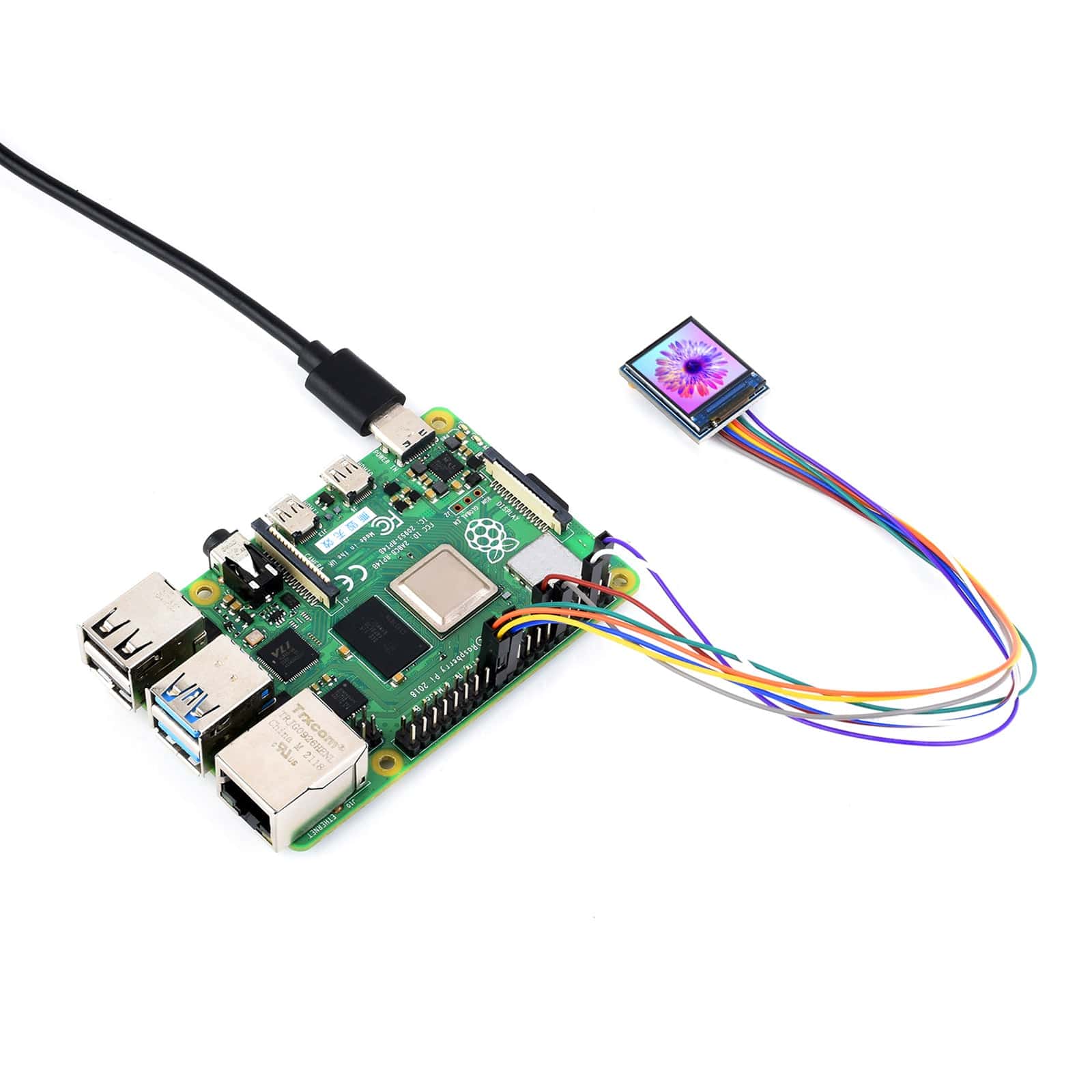

Connection Example - Raspberry Pi

Specifications

Operating Voltage	3.3V	Resolution	128 × 128 pixels
Communication Interface	4-wire SPI	Display Size	15.21 x 15.21mm
Display Panel	IPS	Pixel Pitch	39.6 x 118.8µm

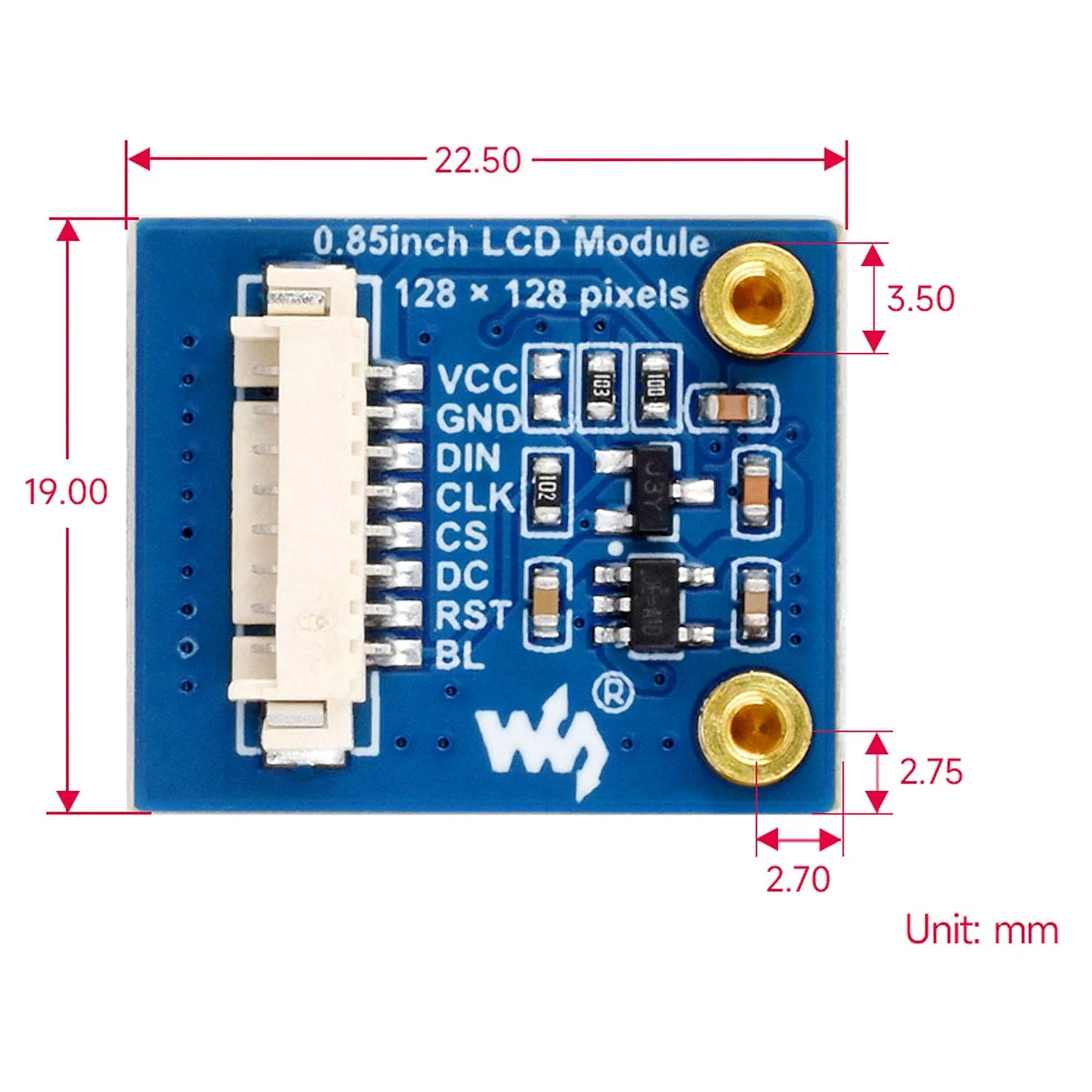

Driver	GC9107	Dimensions	19.0 x 22.5mm

Resources

• Product Wiki
• Schematic Diagram

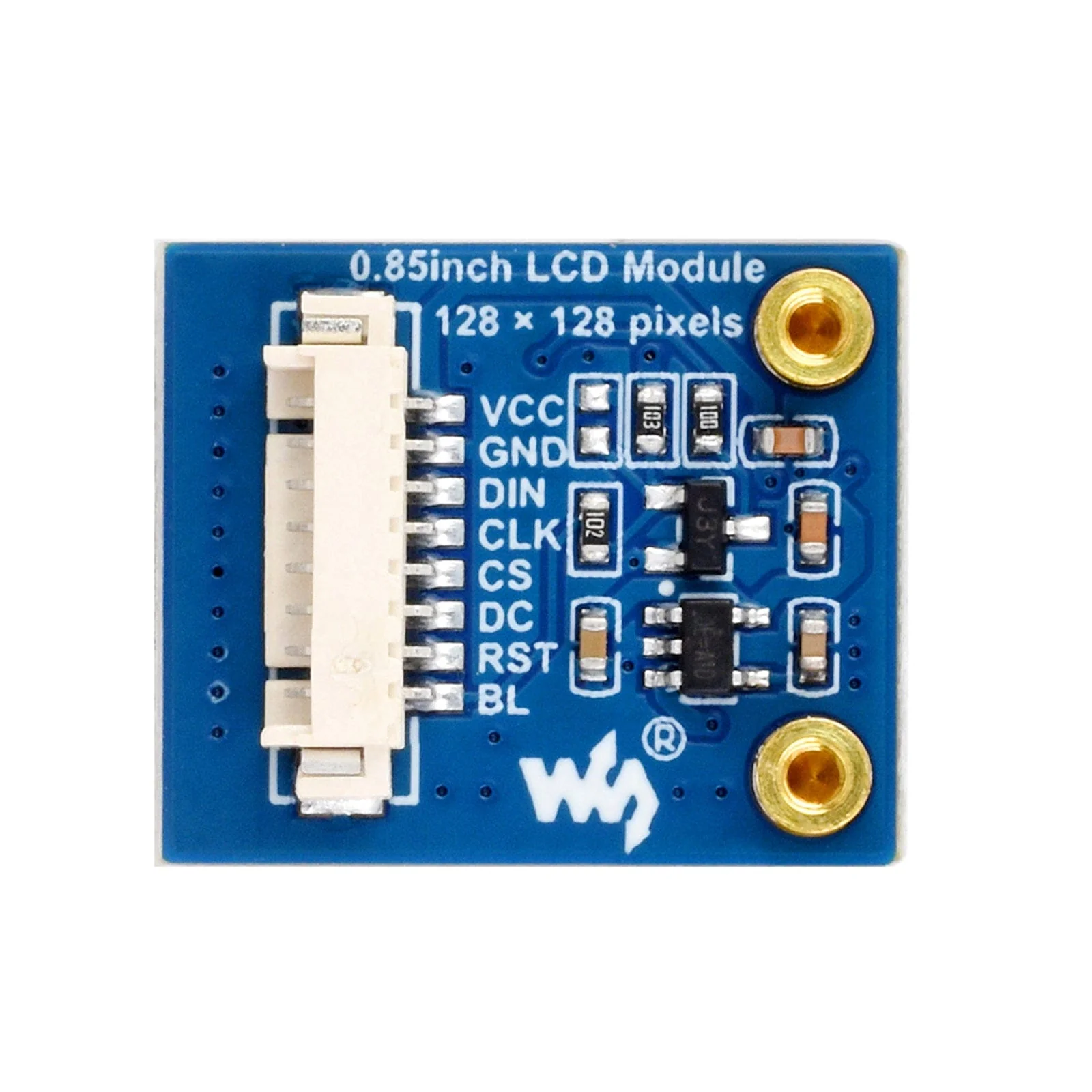

Pinout

Package Contents

• 1x 0.85" LCD Module
• 1x GH1.25 8-Pin cable
